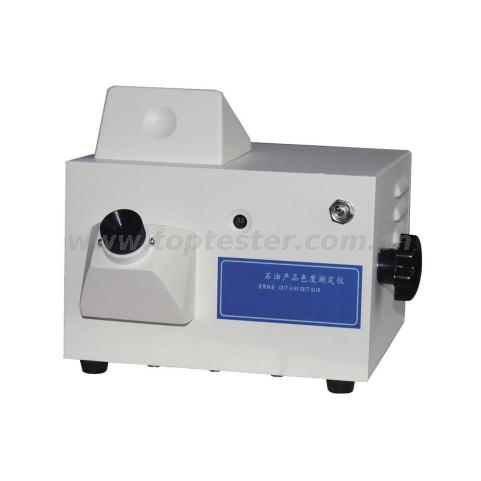

Petroleum Products Color Tester Model TP-018

Application:

This instrument is designed and manufactured in accordance with GB/T 6540 and SH/T 0168. It is suitable for measuring the color and chromaticity of various lubricating oil, kerosene, diesel oil and other petroleum products under the above-mentioned standards. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. The components and compressors are imported.

Features:

u The instrument uses an optical prism magnification system to make the field of vision clearer.

u Adopt the closed lighting system to avoid stray light interference.

u Adopt the three-vision-field design to see the color of the sample and the colors of the two standard color chips directly.

u The integrated structure makes installation and use more convenient.

u The color chip of the instrument is made of optical glass, which is resistant to oxidation and fading.

u The color number can be read and the data can be reported directly through this instrument.

Technical parameters:

& Light source: 6V 20W halogen tungsten lamp

& Dimension: 252×275×275 (mm)

& Weight: 5Kg

Testable items of instrument configuration:

This instrument is designed and manufactured in accordance with GB/T 6540 and SH/T 0168. It is suitable for measuring the color and chromaticity of various lubricating oil, kerosene, diesel oil and other petroleum products under the above-mentioned standards.

Accessories configuration (including manufacturer) (single unit):
