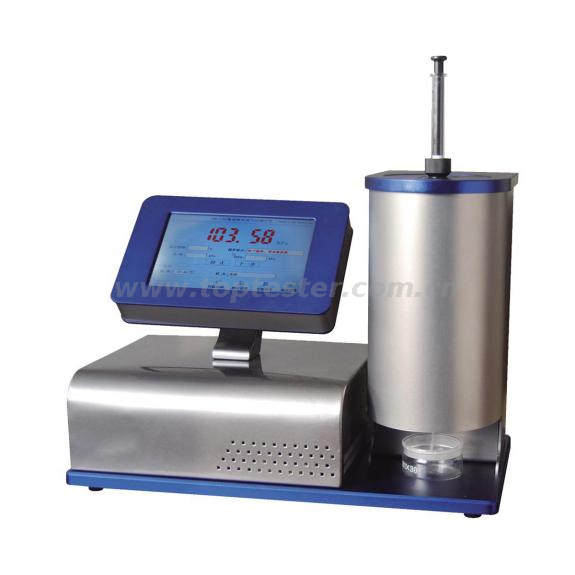

ASTM D5191 Trace Saturated Vapor Pressure Tester Model TP-5191

  • TP-5191
  • CHONGQING TOP
Availability:
Quantity:

Product Description

Application:

Applicable standards for this instrument: SH/T0794, ASTM D5191. It is suitable for measuring the vapor pressure of liquid petroleum products (micro method). Inject the 3ml sample saturated with air into a 15ml volume of the pre-evacuated test chamber. The temperature is controlled at 37.8±0.1°C. Read and evaluate the pressure value every one minute until the pressure stabilizes at 0.1KPa within 3 minutes. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. All the key components are imported, such as pressure sensors, industrial computers, etc., which greatly guarantees the accuracy of the data and the stability of the instrument.



Software performance:

The instrument can operate independently or connect to multiple PCs through HLIS/ALAN to control. The operator can choose quick method or built-in operating instructions to define the test process. It can store 200 groups of data reports, displaying, printing and making LIMS transmission of customized design test reports.

Have automatic operating procedures, such as judging the test results, saving results, printing results, etc.

Have the full Chinese operating system. All experimental processes can be completed automatically after the sample’s injection.

The instrument has a built-in diagnostic program that can check every core component and functional block of the instrument.

The temperature and pressure test system can be calibrated automatically. You can calibrate the temperature and pressure through the screen.

Hierarchical access prevents random modification of the parameters of the test program.

When there is a blue screen, system crash, etc. during use, the instrument has a one-key recovery function and retains the original test data and setting procedures.



Features:

Embedded computer, full Chinese interface, touch screen control.

Automatically convert the saturated vapor pressure result of the Reid method.

Have efficient and fast database function that you can easily check and use the saved experimental results.

Each sample of experiment only requires 3ml.

Each experiment only takes about 7 minutes.

The key components are selected from famous international brands to ensure the performance and reliability of the instrument.

The instrument can be connected to the laboratory LIMS system.



Technical parameters:

Measuring pressure range: 0-200KPa (resolution 0.1KPa)

Temperature control accuracy: 37.8℃±0.1℃

Pressure display accuracy: 0.01KPa

Sample volume: 3ml



Testable items of instrument configuration:

It is suitable for the determination of the Reid saturated vapor pressure of gasoline, volatile crude oil and other volatile petroleum products under this standard to evaluate the volatility strength, start-up performance, the tendency to generate vapor lock and the tendency to lose light fractions during transportation and storage of sample oil, etc.



Computer configuration:

CPU: Onboard Intel Atom D525 dual-core processor, 1.8Ghz, 4GB DDR3 module, 16GB SSD(solid state drive) with Mini-PCIe(Mini-Peripheral Component Interface Express), DC12V power supply

9 Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

Host TP-1591

1 set


2

Vacuum pump FY-1C-N

1 set


3

Keyboard and mouse

1 set


4

Wetted bottle

1 pc


5

Syringe 5ml

1 pc


6

Needles

3 pcs


7

Rubber isolating layer

100 pcs


8

Silicone tube φ6*9

3m




Access to LIMS system:

The instrument can be connected to the laboratory LIMS system and multiple machines can be networked.
