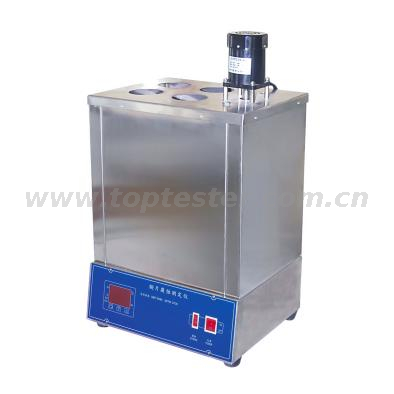

ASTM D130 Petroleum Products Copper Corrosion Tester Model TP-031
Home » Products » Petroleum Tester » Petroleum Products General Testers » ASTM D130 Petroleum Products Copper Corrosion Tester Model TP-031

Category List

Share to:

ASTM D130 Petroleum Products Copper Corrosion Tester Model TP-031

  • TP-031
  • CHONGQING TOP
Availability:
Quantity:

Product Description

Application:

TP-031 Petroleum Products Copper Corrosion Tester is designed and manufactured in accordance with GB/T 5096-2017 and ASTM D130. It is suitable for determining the degree of corrosiveness of aviation gasoline, jet fuel, motor gasoline, natural gasoline or other hydrocarbons with Reid vapor pressure not greater than 124 kPa (930 mmHg), solvent oil, kerosene, diesel, distillate fuel oil, lubricating oil and other petroleum products to copper. The random configuration includes the necessary parts for the test which can be completed without additional spare parts.



Features:

The constant temperature bath inner cylinder is made of stainless steel, which is corrosion-resistant and anti-oxidant.

The stirring device adopts plum-shaped stirring blades with good stirring effect.

Four holes can hang two test springs and six test tubes at the same time.

PID temperature control system with temperature digital display.

Equipped with constant temperature heater and auxiliary heater so that the heating rate is fast.

The test bomb and test tube rack are made of stainless steel.



Technical parameters:

Temperature control range: Room temperature200℃

Temperature control accuracy: ±0.2℃

Heater power: temperature control heating 1000W, auxiliary heating 800W

Stirring motor power: 15W

Bath cover: 4 holes

Dimension: 360×270×490 (mm)

Weight: 15kg



Testable items of instrument configuration:

It is suitable for determining the degree of corrosiveness of aviation gasoline, jet fuel, motor gasoline, natural gasoline or other hydrocarbons with Reid vapor pressure not greater than 124 kPa (930 mmHg), solvent oil, kerosene, diesel, distillate fuel oil, lubricating oil and other petroleum products to copper.

Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

Host TP-031

1 set


2

Fuse Φ6×30 10A

1 pc


3

Sensor

1 pc


4

Hanging cover components

2 sets

High temperature resistance rubber

5

Test tube bracket

2 sets

PTEE

6

Test spring

2 sets


7

Thermometer GB-48

1 pc


8

Thermometer plug

1 pc


9

Observation tube

1 pc


10

Test tube plug

6 pcs


11

Copper test tube

6 pcs


12

Copper test piece

2 pcs


13

Copper sheet color comparison board

1 set


14

Grinder

1 set
