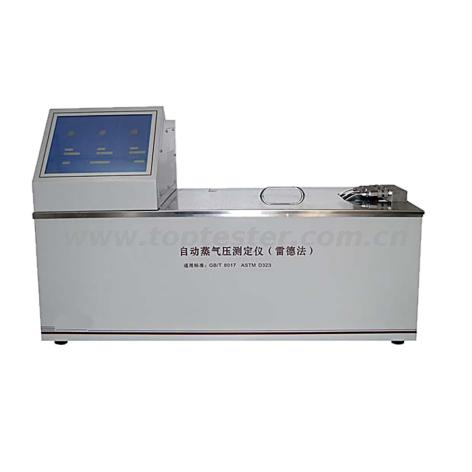

ASTM D323 Automatic Saturated Vapor Pressure Tester Model TP-107

  • TP-107

  • CHONGQING TOP

Availability:
Quantity:

Product Description

Application:

The TP-107 automatic saturated vapor pressure tester is designed and manufactured in accordance with GB/T 8017 and ASTM D323. It is suitable for the determination of the Reid saturated vapor pressure of gasoline, volatile crude oil and other volatile petroleum products under this standard to evaluate the volatility strength, start-up performance, the tendency to generate vapor lock and the tendency to lose light fractions during transportation and storage of sample oil, etc. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. All the key components are imported, such as pressure sensors, industrial computers, etc., which greatly guarantees the accuracy of the data and the stability of the instrument.



Software performance:

The instrument can operate independently or connect to multiple PCs through HLIS/ALAN to control. The operator can choose quick method or built-in operating instructions to define the test process. It can store 200 groups of data reports, displaying, printing and making LIMS transmission of customized design test reports.

Have automatic operating procedures, such as judging the test results, saving results, printing results, etc.

Have full Chinese operating system. All experimental processes can be completed automatically after the sample’s injection.

The instrument has a built-in diagnostic program that can check every core component and functional block of the instrument.

The sample temperature and pressure test system can be calibrated automatically. You can calibrate the temperature and pressure through the screen.

Hierarchical access prevents random modification of the parameters of the test program.

When there is a blue screen, system crash, etc. during use, the instrument has a one-key recovery function and retains the original test data and setting procedures.

Features:

Embedded computer, 10.4-inch LCD screen, full Chinese operating system, fully automatic completing of all experimental processes after sample loading.

Have automatic operating procedures, such as judging the test results, saving results, printing results, etc.

The vapor pressure bomb is placed in a horizontal position. It will automatically change direction every time it rotates 350°.

When the vapor pressure in the vapor pressure bomb reaches saturation, the buzzer will prompt.

The pressure sensor is placed on the side of the instrument, which reduces the distance between the projectile and the sensor, making the experimental results more accurate.

Quick joints and PU pipes both are imported, preventing air leakage from the projectile.

Equipped with LIMS interface.



Technical parameters:

Water bath temperature: 37.8±0.1℃

Pressure display accuracy: ≤0.25KPa

Heating power: 1000W

The number of steam pressure bomb: 3 pcs

Water bath volume: 550×260×240 (mm)

Dimension: 630×450×420 (mm)

Weight: 20Kg

Testable items of instrument configuration:

It is suitable for the determination of the Reid saturated vapor pressure of gasoline, volatile crude oil and other volatile petroleum products under this standard to evaluate the volatility strength, start-up performance, the tendency to generate vapor lock and the tendency to lose light fractions during transportation and storage of sample oil, etc.



Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

Host TP-107

1 set


2

Fuse Φ6×30  10A

1 pc


3

Pressure correction device

1 set


4

Reid vapor pressure bomb

3 sets


5

Specimen translocator

1 set


6

Thermometer 3442℃

1 pc


7

O-ring Φ21.5X3.5 inside

6 pcs


8

Pump +1.5m PU pipe

1 set


9

Gasoline chamber plug and air chamber rubber plug

3 pcs of each


10

Keyboard and mouse

1 set




Access to LIMS system:

The instrument can be connected to the laboratory LIMS system and multiple machines can be networked.
