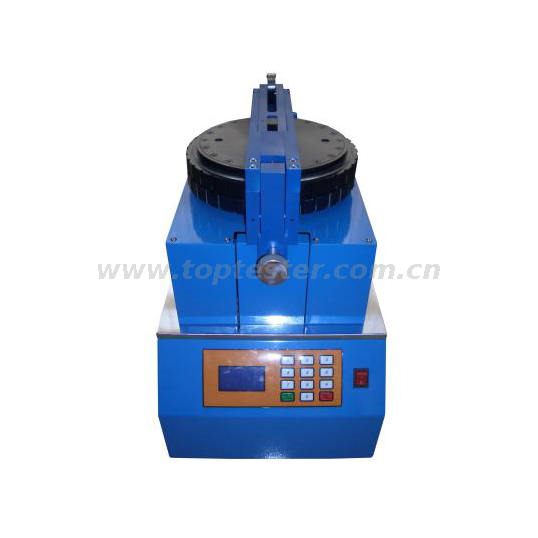

PM240-III Model Flat Grinding Machine

Application and Features

Flat grinding machine is the essential equipment in the national standard GB5211.19 “Visual comparison method for determination of coloring pigment relative tinting strength and dilute color”.

This machine can be used as dedicated physical properties test instruments for paint, coatings,printing ink industry.Compact structure,concise appearance,easy conversion speed and load, easy installation work tray.With LCD screen display, convenient parameter setting.

Specification

1. Grinding disc diameter:          240mm

2. Load:                          43kg     64kg    100kg

3. Farmar weight:                 1.75kg    3.5kg    6.42kg

4. Power supply:                  220VAC 50HZ

5. Glass disk rotational speed:      75 Rev / min±5Rev / min

6. Setting turns display range:       1~9999

7. Running turns display range:      0~9999

8. Cumulative number display range: 0~9999

9. Dimension:                     580*360*480（L*W*H）

10. Weight:                       About 80kg

11. Motor Power:                  0.75kw
