Online Water Content Tester PTT-006
Home » Products » Petroleum Tester » Petroleum Products General Testers » Online Water Content Tester PTT-006

Category List

Share to:

Online Water Content Tester PTT-006

  • PTT-006
  • CHONGQING TOP
Availability:
Quantity:

Product Description

Product Description:

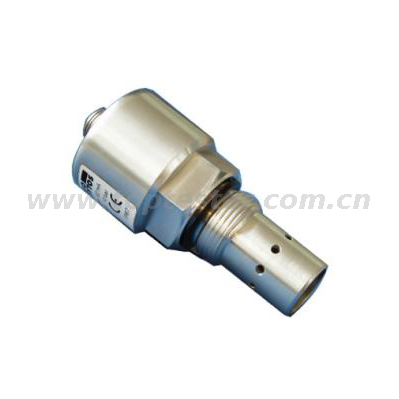

Online Water Content Tester PTT-006 is developed by our company independently, which can continuously monitor the state of oil and water content online. The latest German technology is used to support on-line and off-line detection of oil. The product is equipped with detector and analysis software, which can quickly and accurately detect the moisture content in the oil, and can communicate with external equipment through serial port.



Main Features:

1. The relative content of water in oil can be detected by continuous measurement of the screw-type sensor. The change of oil state can be detected and recorded, and the data can be updated in real time and stored continuously.

2. The 3/4 inch diameter probe can be directly inserted into the oil circulation circuit and the oil tank for testing.

3. RS232 serial interface is used for communication.

4. Reading data through serial interface, the data can be saved for up to half a year.



Technical Parameter:

Basic parameters

Maximum working pressure

10

Bar

Oil working temperature

-20…100

°C

Data output

4…20mA,RS232,CAN/CANopen


Protection level

IP67


Measuring liquid

Mineral and ester liquids, polyolefin net


power supply

Voltage

9…33

V

Current

<0.2max

A

Environmental condition

storage temperature

-20…+80

°C

humidity

0…95

% r.H

Connection method

Threaded connection

G3/4


Electrical connection

M12X1,8 Connector


Measuring range

Relative permittivity

1…7

-

Relative humidity

0…100

%

Conductivity

0…45000

PS/M

temperature

-20…120

°C

measurement accuracy

Relative permittivity

±0.015

-

Relative humidity

±3

% r.H

temperature

±1

K
