Industrial Online Conductivity/Resistivity/TDS/Temp Monitor C270
Home » Products » Petroleum Tester » Petroleum Products General Testers » Industrial Online Conductivity/Resistivity/TDS/Temp Monitor C270

Category List

Share to:

Industrial Online Conductivity/Resistivity/TDS/Temp Monitor C270

  • C270
  • CHONGQING TOP
Availability:
Quantity:

Product Description

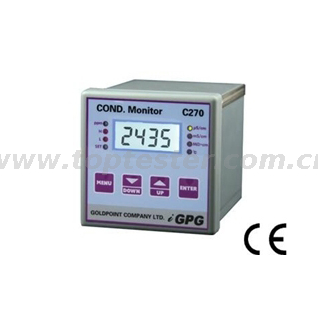

C270 is a panel instrument for on-line monitoring of industrial process conductivity, Resistivity, TDS, Temperature. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable.



Features

4 LCD digital with back-lit display

Measure process Conductivity, Resistivity, TDS, Temperature

0 ~ 100automatic/manual temperature compensation

Manual or Automatic buffer adjustment

Restore factory setting function is available

Galvanic separation between inputs and outputs and supply voltage

High and low programmable alarm, 250V/10A relay output

Adaptation SensorCON0.01CON0.1CON1.0CON10CON30

On-Line HELP with Text Error Messages



Specifications

Range of Measuring0~18MΩ.cm or 0~99.99us/cm

0~999.9us/cm

0~9999us/cm

0~100ms/cm

0~300ms/cm

0~10000ppm

0~100

Adaptation SensorCON0.01CON0.1CON1.0CON10CON30

Resolution0.01 MΩ,0.01 uS/cm to 0.01 mS/cm0.1

Accuracy:± 1%(F.S) ,±0.2

Temperature CompensationAutomatic / manual 0 to 100

Alarm OutputTwo relays outputs (250V/10A)full range with hysteresis adjustable

Current outputDC 4~20mAOpto-isolated outputs( 750Ω Max. load)

Ambient Operating-10~+55

Power supplyAC110V~220V±10%50/60Hz±10%

Humidity:≤95% R.H.

DimensionsDIN standards96×96×110mm

Mount TypePanel

Cut-out Size92×92mm

Enclosure RatingIP54

Weight0.5Kg



Features

Resisvitity / Conductivity electrode, for conductivity monitors use

High sensitivity and accuracy with reliability and durability

Please note the value of temperature compensation resistance in ordering

The electrode has fixed cable, the length of the cable can be adjusted according to customer's requirement

Stainless steel or Platinum material
