Fully Automatic Potentiometric TAN TBN Titrator TP6696

  • TP-6696
  • CHONGQING TOP
Availability:
Quantity:

Product Description

Description:

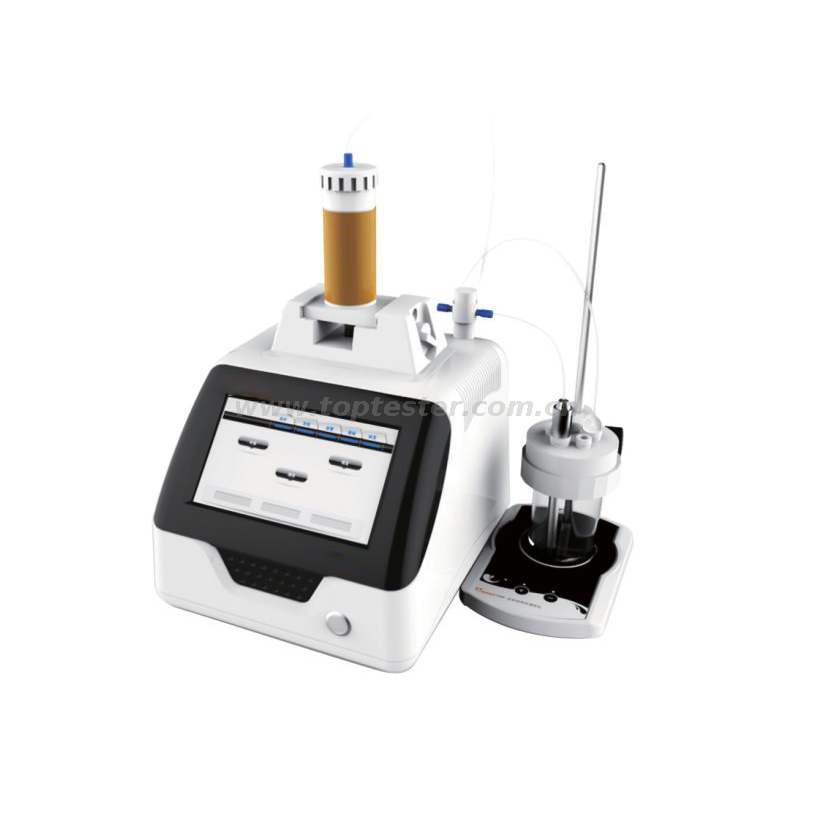

TP6696 automatic titrator is a lab titration device with high analysis accuracy under the principle of potentiometric titration. It has modular design and consists of three parts: volume titration device, control device and measuring device. The titration methods include macro titration, micro titration, volume setting titration, EP, etc. It conforms to ASTM D664 Test Method for Acid Number of Petroleum Products by Potentiometric Titration and ASTM D2896 Test Method for Base Number of Petroleum Products by Potentiometric Perchloric Acid.





Feature:

1. Zerodead volume solenoid valve, changing easily for PTFE burette. Ultrathin stirring device, adopt coil realize magnetic Stir.

2. Accuracy closedloop control for volume.

3. Highaccuracy burette accurate to 0.005mm.

4. Simple design, discrete stirring unit, detachable easily.

5. Wide operating voltage range 110~240V, apply to global client.

6. LCD touch screen.



Technical data:

Resolution

0.01pH; 0.1mV; 0.1°C

pH measuring range

0.00pH14.00pH

mV measuring range

0±2000mV

Temperature measuring range

(5.0~105.0)°C

Repeatability

0.20%

Sensitivity of controlling titration

≤2mV

Power supply110240V 5060Hz

110240V 5060Hz

Burettvolume tolerance

Burette 15mL ±0.025mL

Burette 25mL ±0.035mL

titration mode

HClNaOH;K2Cr2O7Fe2+
