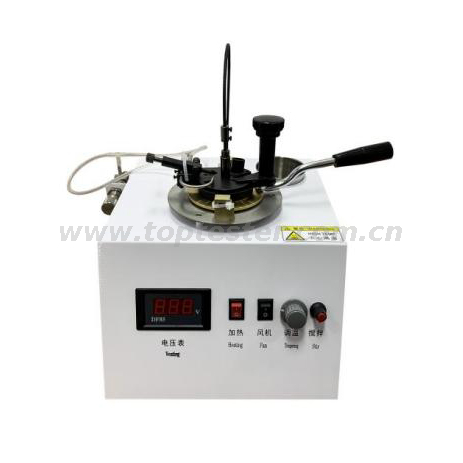

TPC-100
CHONGQING TOP
| Quantity: | |
|---|---|
Product Description
Application:
TPC-100 tests the flash point of petroleum products. It complies to the regulated methods of ASTM D93, SH/T 0315 Closed Cup Flash Point Tester Technical Conditions.
Features:
1.Highlighted LED timely displays voltage; with heating power continuously and step-less adjustable; temperature rising precision greatly improved.
2.With temperature rising adjustment button and air cooking control button.
3.Designed totally regarding national standard; stirring high and low speed two-way regulation.
High precision air valve adjustment, safe and reliable.
Technical parameter:
Heating device | Heating power: 600W, continuously adjustable: 0-600W |
Electric stirring device | Motor and flexible axle jointing stirring; stirring vane: 8*40mm |
Standard oil cup | Inner diameter: 50.8mm; Depth: 56mm Oil test capacity groove depth: 34.2mm Oil test capacity: about 70ml |
Ignition device | Gas ignition.(or other civil use gases ) |
Thermometer
| Internal marked mercury thermometer; complies to GB514 standard. (1) scale:-30~170°C; scale division: 1°C (2) scale: 100~300°C; scale division: 1°C |
Working power | AC 220V±10％, 50Hz |
Power consumption | ≤650W |
