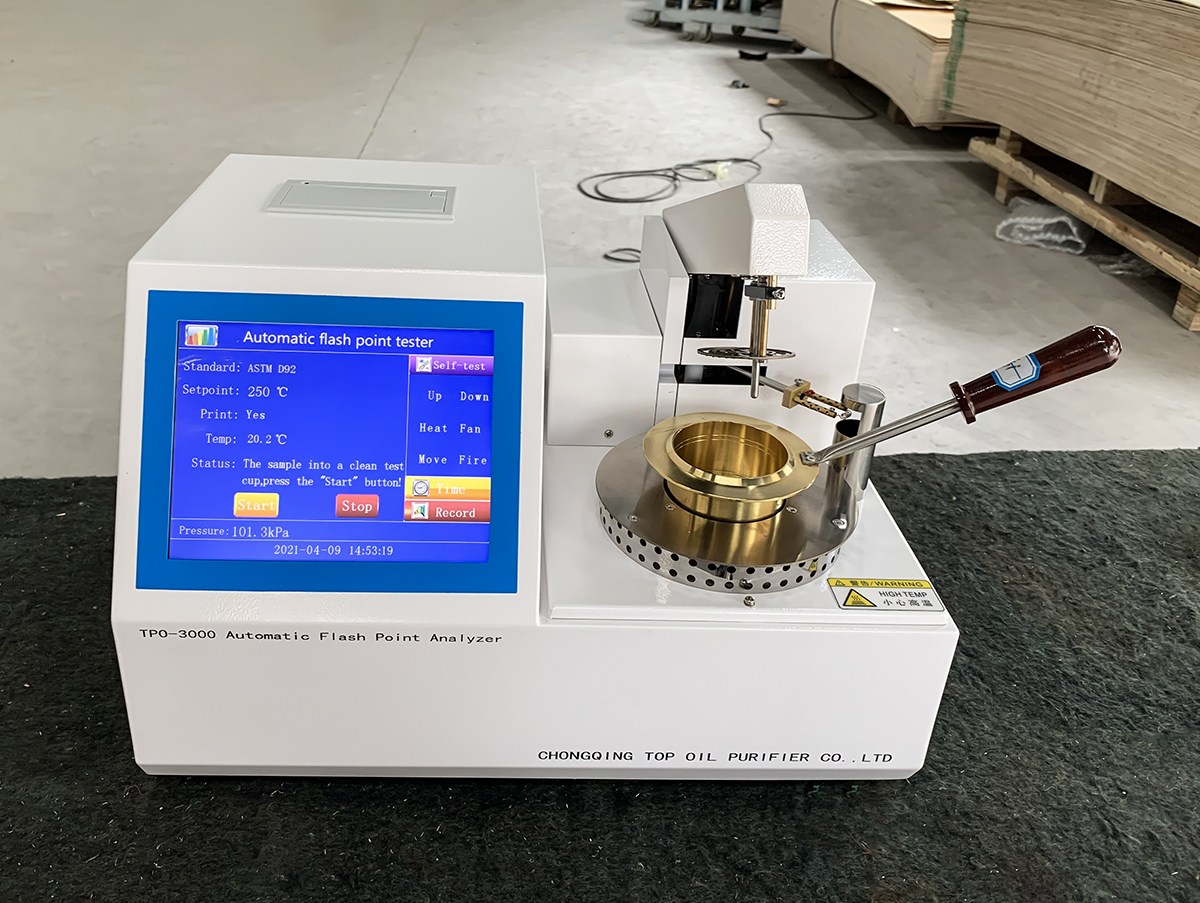

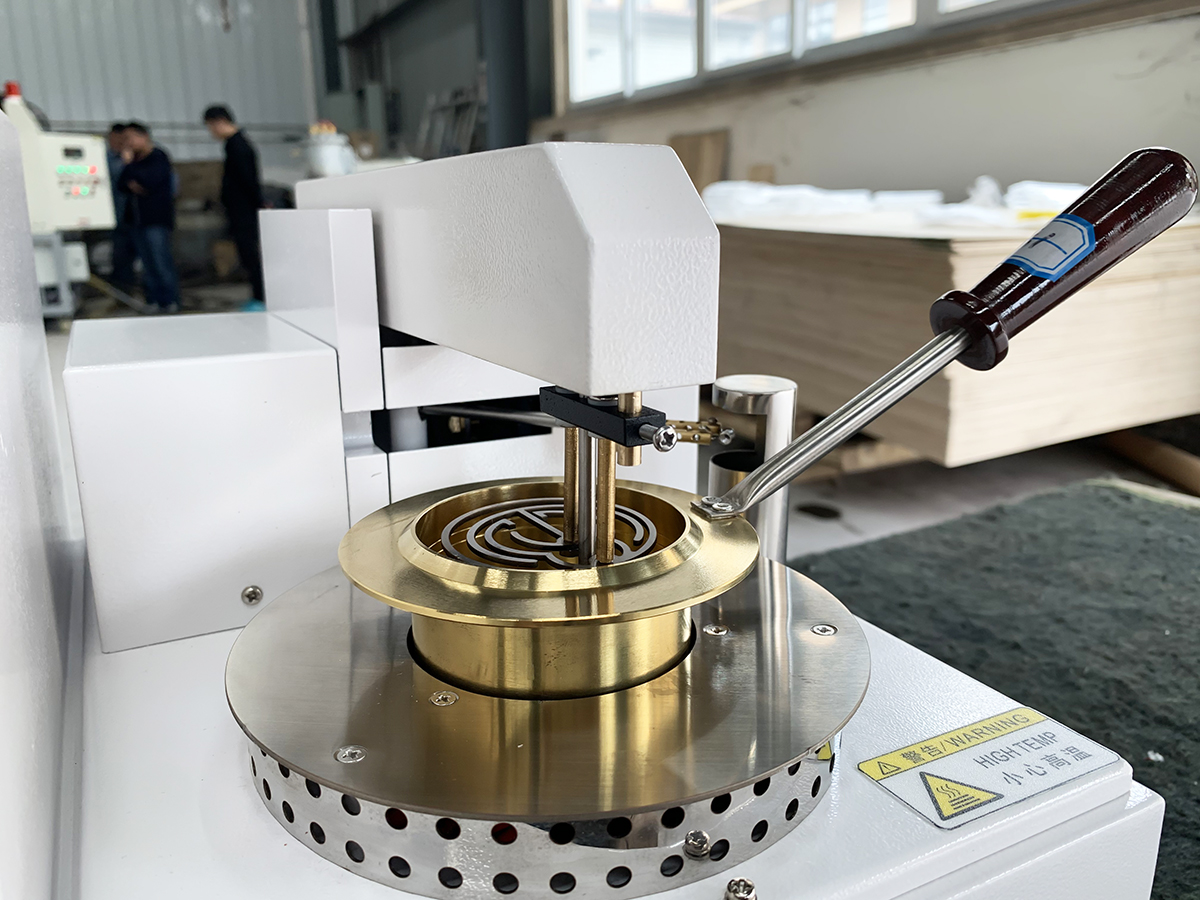

ASTM D92 TPO-3000 Fully Automatic Flash Point Analyzer (Open-Cup)

  • TPO-3000

  • CHONGQING TOP

Availability:
Quantity:

Product Description

Application:

The automatic flash point analyzer (open-cup) is designed in accordance with ASTM D92, IS02592,GB267,GB3536 standard and reaches the industry requirement of UK and EU. It adopts microcomputer technology that makes realization of completely automatic. It equips with color touch screen operations system and auto-high speed thermal printer.Most important,it has the function of self-checking.It is an ideal flash point analyzer(open-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.



Features:

7-inch color touch screen and man-machine conversation LCD display in Chinese/English.

2. Adopts high speed signal processor: precision simulation/digital converter circuit.

3.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure;self-adjust the flash point.

4. Data storage function: store 300 groups testing data. It is timely to check historical records.

5. Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.

6. Stirring,ignition,testing,alerting,cooling,printing are fully automatic.

7. Adaptive PID control algorithm: automatically adjust the heating curve according to standards.

8. Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.

9. Security airless source of platinum alloy to ignite:stable,reliable and high precision.



Technical parameter:

Display

7-inch color touch LCD display screen

Test method:

Thermocouple differential detection

Test range:

Room temperature-400°C

Repeatability:

±2°C

Printer:

High speed thermal printer, paper size:44mm

Ignition mode:

Automatically electronic ignition

temperature Detection

Imported precision platinum resistance

Self-checking :

Printer, igniter, electromagnetic valve, the detection arm movements, ignition rod stroke ect.

Power consumption:

<700w

Temperature:

Atmospheric temperature: 10°C-45°C, humidity: 30-80%

Power:

AC220V±10%

Dimension

400*300*240mm

Weight:

20 kg
