TPO-100
CHONGQING TOP
| Quantity: | |
|---|---|
Product Description
Introduction

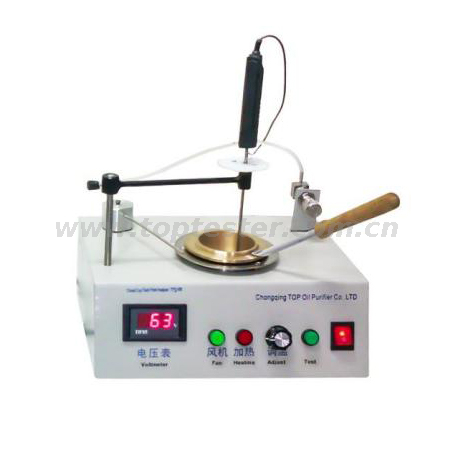

This device complies to requirements of ASTM D92, GB/T3536-2008. It’s suitable for testing flash point and fire point of petroleum products and pitch (except fuel oil) of which the open cup flash point is higher than 70°C. Also it’s applicable for JTJ052—2000 road rules T0611—1993 Pitch Flash Point And Fire Point Test (Cleveland Open Cup Method) , national standard ISO-2592 test method and ASTM D 92 standard.
Features
1. Ignition rod automatically sweep stroke and automatically ignite the experiment cup to reduce personal error.
2. Voltmeter directly display real-time voltage; intuitive and reliable.
3. Electric furnace heating power of 0 ~ 1000W; continuously adjustable.
Technical parameters
Power supply | AC 220V±10%, 50Hz |
Heating device | quartz tube electrical furnace heating; no open flame; anti-explosion; continuously adjustable power |
Thermometer | -6~400°C, division 2°C |
Ignition device | A ignition source: coal gas (or other civil combustible gas); nozzle aperture: 0.6--0.8mm |
Ambient temperature | -10°C~50°C |
Relative humidity | ≤85% |
Power consumption | less than 650W |
