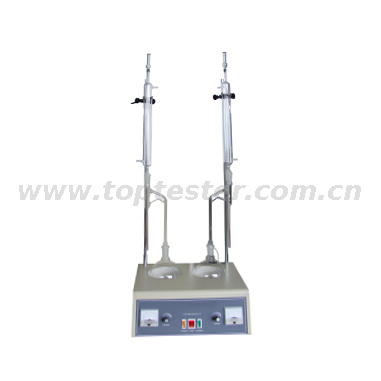

ASTM D4006 Crude Oil Water Content Tester TP-8929A

Introduction

This instrument is designed and made as per the National Standard of People’s Republic of China GB/T8929 Standard Test Method for Water Content in Crude Oil (Distillation method) and ASTM D4006 Standard Test Method for Water in Crude Oil by Distillation. It is used to determine the water in crude oil.

Main technical features

Desktop structure and double units. It can do two determinations at the same time.

Equipped with heating mantle cap. Heating power can be adjusted continuously.No naked fire, safe to use.

Distillation flask, water receiver and condenser are all designed as per standard.

Main technical specifications

1. Power supply: AC(220±10%)V, 50Hz

2. Heater: heating mantle, 500W*2, continuous adjustment

3. Distillation flask: 1000 ml

4. Water receiver: 5ml, min scale is 0.05 ml

5. Condenser: 400mm±5mm

6. Ambient temperature: -10°C~+35°C

7. Relative humidity: ≤85％

8. Dimension:

425 mm*330 mm*150 mm (not include test vessel)

425 mm*330 mm*1180 mm (include test vessels are included)
