ASTM D381 Fuel Gum Tester Model TP-021B

  • TP-021B

  • CHONGQING TOP

Availability:
Quantity:

Product Description

Application:

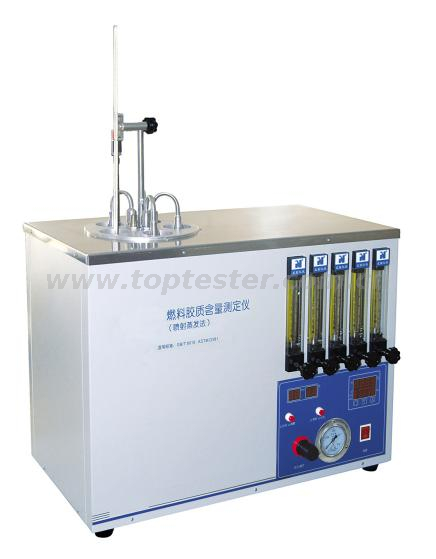

TP-021B Fuel Gum Tester is designed and manufactured in accordance with GB/T 8019-2008 GB/T 509 and ASTM D381. It is suitable for determining the actual gum content of motor gasoline, as well as the unwashed gum content of motor gasoline. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. The flow rate of each hole can be adjusted individually.



Features:

Environmentally friendly metal bath with the characteristics of fast heating speed, safety and reliability.

PID temperature control system with temperature digital display, temperature continuously adjustable.

Five sets of flow meters visually display the flow rate of each hole and the flow rate of each hole is individually controlled. It solves the problem that the air flow rate may be uneven when each hole is working, which would affect the test result.

Glass rotameter is intuitive and easy to control.

Oil-free silent air compressor with oil-water separator solves the problem of interference of the moisture in the compressed air to the normal test.

Technical parameters:

The evaporation bath is a five-hole metal bath, which can do multiple oil sample tests at the same time.

Evaporating bath temperature 160℃165℃, automatic control

Test hole temperature: 150℃160℃

Air pressure: ≤35kPa

Air flow: 36 L/min±3.6 L/min, controlled by flow meter

Temperature control range: Room temperature300℃

Temperature control accuracy: <±1℃

Power supply: AC220V±10% 50HZ

Testable items of instrument configuration:

It is suitable for measuring the actual gum content of motor gasoline and determining the unwashed gum content of motor gasoline.

Accessories configuration(including manufacturer)(single unit)

Serial Number

Name and Specification Model

Quantity

Remarks

1

Host TP-021B

1 set


2

Fuse Φ6×30 15A

1 pc


3

OTS-1100x4x160L air compressor (including oil-water separator)

1 set

Working pressure: 0.8Mpa

Displacement: greater than 960L/min

Rated power: 4.5Kw

Rated voltage: 380V/50Hz

Rated current: 15A

Rated speed: 1400rpm

Noise: not more than 80dB (A)



4

8019 test nozzles

5 pcs


5

Thermometer bracket

1 pc


6

Sensor

1 pc


7

Thermometer GB29 5℃400℃

1 pc


8

8019 plastic cup

5 pcs


9

Quick connectorΦ8-02 inner wire

1piece
