ASTM D1160 Vacuum Distillation Testing Equipment DIL-0165

  • DIL-0165
  • CHONGQING TOP
Availability:
Quantity:

Product Description

Introduction:

DIL-0165ASTM D1160 Vacuum Distillation Testing Equipment is designed and made as per the industrial standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure.

DIL-0165ASTM D1160 Vacuum Distillation Testing Equipment is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.



Features:

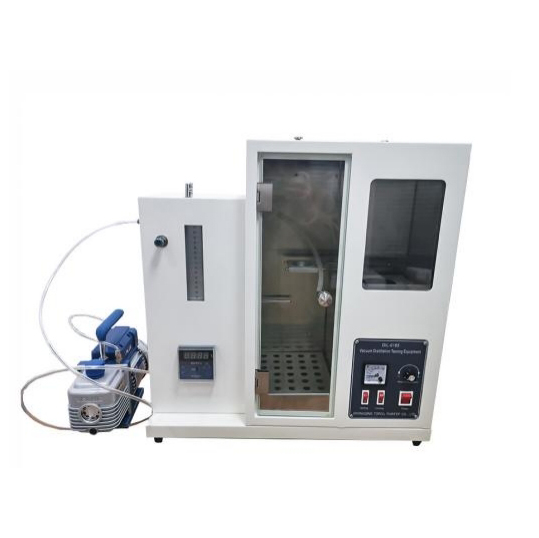

DIL-0165ASTM D1160 Vacuum Distillation Testing Equipment is desktop structure. It is composed of distillation test part and vacuum process part. It can meet requirements of SH/T 0165

The power of the heating furnace can be adjusted continuously. It equips a cooling device to make the heating furnace cooled down rapidly after determination. It is convenient for next test.

The vacuum pump has good effect. The max residual pressure is 2mmHg.



Specifications:

1

Power supply

AC 220 V±10%, 50 Hz

2

Heating power

Heater for distillation flask: 1000 W

Heater for receiving flask: 350 W

3

Heating power for distillation flask

0W to 1000 W, adjustable

4

Temperature range for air bath of receiving flask

room temperature to 100 °C,adjustable.

5

Temperature sensor of air bath

Pt100,RTD

6

Temperature control mode for air bath

Digital temperature controller

7

Temperature controlling precision

Set temp. ±1 °C

8

Valume of buffer vessel

1000 ml

9

Max. Residual pressure of vacuum pump

2 mmHg

10

Illumination light in the air bath of receiving flask

Energy saving lamp

11

Working condition

Ambient temperature: 5°C to 35 °C   Relative humidity: ≤85%
