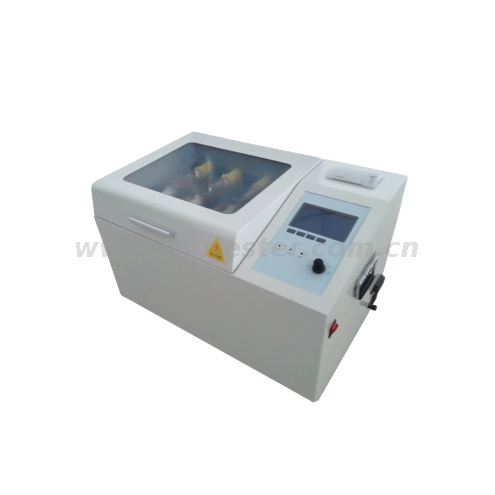

Three Cups Insulating Oil Dielectric Strength Tester IIJ-III

  • IIJ-III

  • CHONGQING TOP

Availability:
Quantity:

Product Description

Features

The instrument is portable and of three cups design;

5.4 inch LCD screen, English menu easy to man-machine dialogue, with functions of temperature and humidity measurements, and clock display;

Simple operation, auto-complete boost, maintain, stir and let stand, computing, data storage and printout and other operations;

It can store data when the power is cut, automatically save the test results;

Over voltage, over current, limit and grounding alarm functions to protect the safety of operating personnel;

Unique waveform tuning function, eliminate harmonic waves’ interference for accurate determination;

Use of PLC and CPU dual control, guarantee instrument work stable and reliable:

The instrument controlled by large-capacity single-chip, stable and reliable;

Instruments offers a wide range of watchdog circuit, eliminate the phenomenon of death;

A variety of operation choices, the instrument program has GB1986, GB2002 two national standard methods and custom actions to adapt to a wide selection of different users;

Unique high voltage sampling instrument design allows test values directly into the A/D converter, to avoid errors in analog circuits, and measurement results more accurate;

A variety of operation choices, the instrument program has GB1986, GB2002 two national standard methods and custom actions to adapt to a wide selection of different users;

Unique high voltage sampling instrument design allows test values directly into the A/D converter, to avoid errors in analog circuits, and measurement results more accurate;


Technical Parameters

Output voltage

0~80kV(can be set)

Voltage distortion

≤2%

Voltage rise rate

2.0kV/S, 2.5kV/S, 3.0kV/S, 3.5kV/S(four gears optional)

Boost capacity

1.5kVA

Accuracy

±(2%+2words)

Power voltage

AC220V±10%

Power frequency

50Hz±2%

Power consumption

≤200W

Applicable temperature

0℃~45℃

Applicable humidity

≤85%RH

Dimension

(w)410mm(h)390mm(vertical depth)375mm

Net weight

~29kg
