ASTM D971 Fully Automatic Surface/Interface Tension Tester IT-800A
Home » Products » Petroleum Tester » Insulating Oil Testers » ASTM D971 Fully Automatic Surface/Interface Tension Tester IT-800A

Category List

Share to:

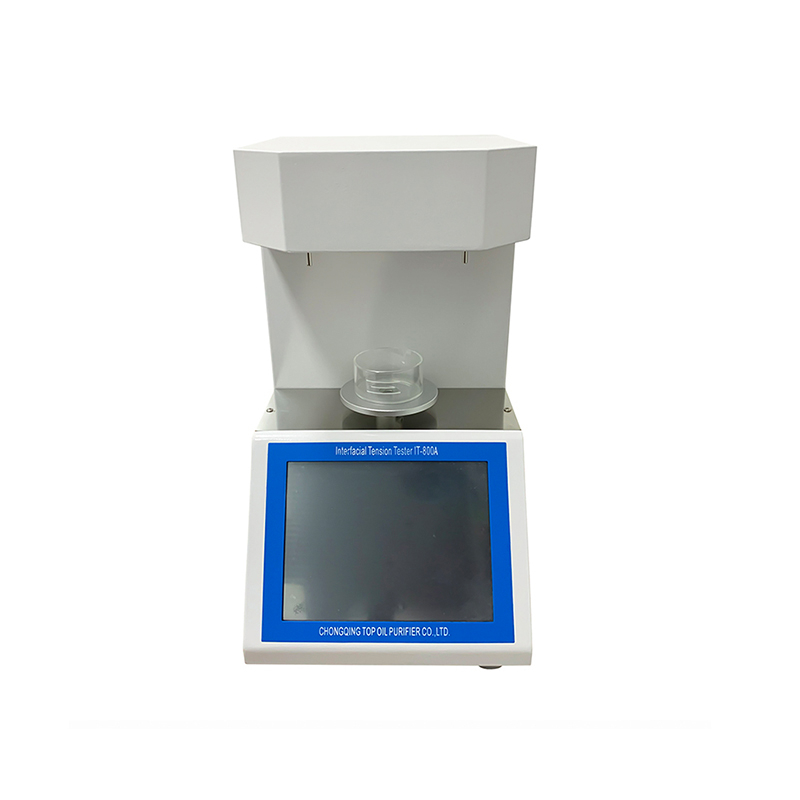

ASTM D971 Fully Automatic Surface/Interface Tension Tester IT-800A

  • IT-800A
Availability:
Quantity:

Product Description

Application

IT-800A analyzer, adopting ASTM D971 “platinum ring method”, tests interfacial tension for various liquids (between liquid and air) and also that between mineral oil and water(between liquid and liquid) by means of automatic control of internal microcomputer under circumstances of nonequilibrium. It only needs you pour the sample into sample cup and then press “start” button. Then the tester will finish the whole test and calculate the tension value automatically according to concrete input parameters.



Features

1.Large color LCD screen, English prompt, menu operation, fully automatic testing.

2.Automatic temperature compensation within 25℃ eliminates the influence that the temperature imposes on the tension value.

3.Functions of auto correction, auto testing, calculation, results displaying, and storage under power off circumstance.

4.The main body is equipped with hurricane globe, which lessens the influence outer matters impose on testing results.

5.Automatic lift of the lift platform ensures a stable environment and high accuracy.

6.It adopts enclosed magnetic pot type sensor and multi-point calibration of uniform space technology, which improves the repeatability and reproducibility of the results.

7.It can work independently and can also realize network management via connection with laptops or microcomputers through USB interface.

8.Tester program can be updated accordingly if related national standard revised.



 Technical Parameters

Method of Display:

large LCD display screen, in English

Method of Testing:

Platinum ring method

Testing Range:

0-200mN/m.

Sensitivity:

0.1mN/m

Accuracy:

±0.1mN/m

Self-checking:

Breakdown auto diagnostics

Temperature Compensation:

Automatic temperature compensation

Power:

Less than 40W

Dimension:

185260360mm

Working Environment:

Temperature:10℃-40℃; Humidity: ‹80%

Power Supply:

AC220V±10%, 50HZ±2.5HZ

Weight:

About 15kg
