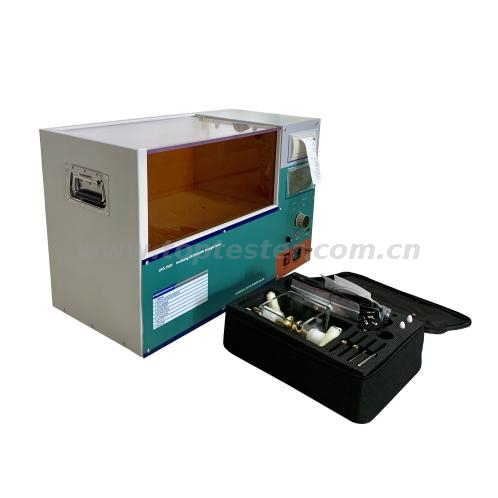

DYO Insulating Oil Tester

Output voltage

AC 0~100KV (0-80KV can be customized)

Rate of voltage rise

0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

Max test times

9

Init wait times

0~999s

Stir time

0~999s

Wait time

0~999s

Measurement accuracy

±(1% of full scale + 2 digits)  Resolution:0.1KV

Temperature measurement

Measurement range

0°C to 70°C, or better

Temperature resolution

1°C, or better

Operating temperature

up to 45°C

Storage

100 groups

Display

7 inch colorful LCD with touch pad

Structure

Oil test vessel temperature measurement unit

Weight

38kg

Size

460 mm*380mm*360mm
