Six Cups Insulating Oil Dielectric Strength Tester IJJ-Ⅵ
Home » Products » Petroleum Tester » Insulating Oil Testers » Six Cups Insulating Oil Dielectric Strength Tester IJJ-Ⅵ

Category List

Share to:

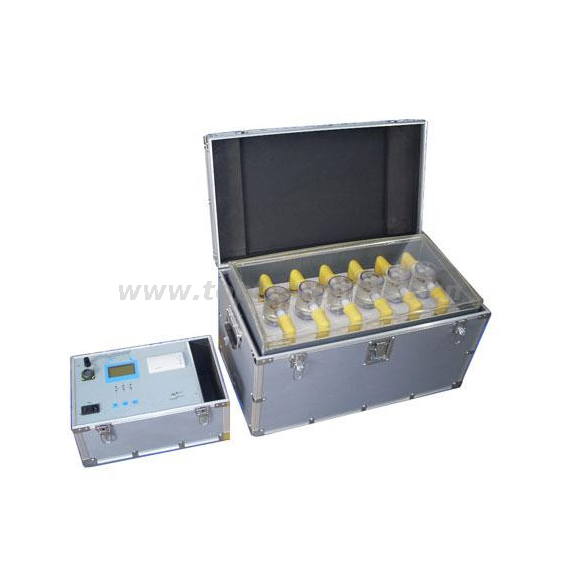

Six Cups Insulating Oil Dielectric Strength Tester IJJ-Ⅵ

  • IJJ-Ⅵ
  • TOP OIL PURIFIER
Availability:
Quantity:

Product Description

Application:
The core of this instrument is a monolithic microcomputer, to achieve a fully automated test, English LCD display, printout, 1-6 cups of sample oil can be test in one experiment, the oil circulation pressure test conducted within the range of 0 ~ 80kV.



Technical Parameter:

Power supply voltage

AC220V ± 10%

Power frequency

50Hz ± 1Hz

Power consumption

≤200W

Measuring range

0 ~ 60 kV; 80kV (menu select)

test cups

1-6 cups (optional)

Boost Speed

2.0kV / s or 3.0kV / s (shortcuts selection)

Electrode Spacing

2.5mm

Dimensions

control box: 460  360  260 (mm)

Oil Cup tank

700  420  390 (mm)

Weight

Control box: 10kg
Oil cup box: 27kg

Ambient temperature

0 ~ + 40 °C

Relative Humidity

<75%
