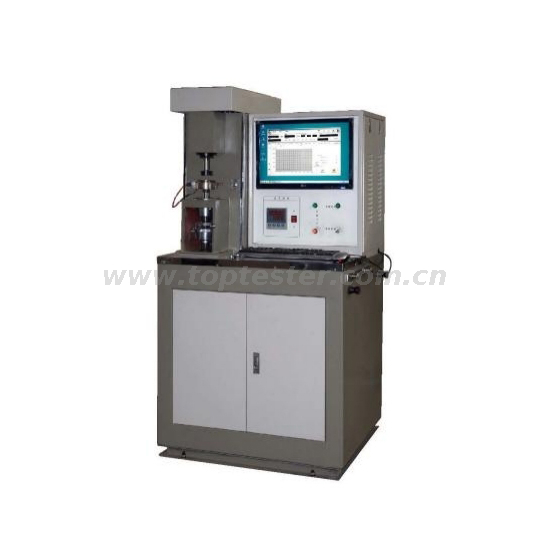

Microcomputer Controlled Four Ball Wear Test Machine (FB-10A Model)

  • FB-10A
Availability:
Quantity:

Product Description

Main Application

This machine determines the bearing capacity of lubricant in form of sliding friction under much high point contact pressure, including maximum non-seizure load PB, sintering load PD,composite wear value ZMZ etc. This machine can do lubricant long time wear resistance test to determine the coefficient of friction.



Applicable Standards

GB/T12583-98 lubricant extreme pressure performance measurement (four ball machine method)

GB3142-82 lubricant bearing capacity measurement method (four ball method)

SH/T0189-92 lubricant anti-wear performance measurement (four ball machine method)

SH/T0202-92 extreme pressure grease performance measurement (four ball machine method)

SH/T0204-92 grease anti-wear performance measurement (four ball machine method)



Technical Parameters



No.

Item

Technical Parameter

  1

Test force range (stepless adjustable)

60N-10kN

  2

Relative error for test force value

±1%

  3

Test force long time keeping value error

±1%F.S

  4

Friction test range

0-300N

  5

Friction test error

±3%

  6

Main spindle rotational speed range (stepless adjustable)



200-2000r/min

  7

Main spindle rotational speed error

±10 r/min

  8

Friction pair temperature control range

Room temperature-200℃

  9

Friction pair temperature control error

±2℃

 10

Test time control range

1 seconds - 99 hours

 11

Main spindle rotational speed control range

1-9999999revolutions

 12

Dimension

1160mm×750mm×1640mm

 13

Net weight

About 400kg

 14

Testing steel ball

φ12.7mm
