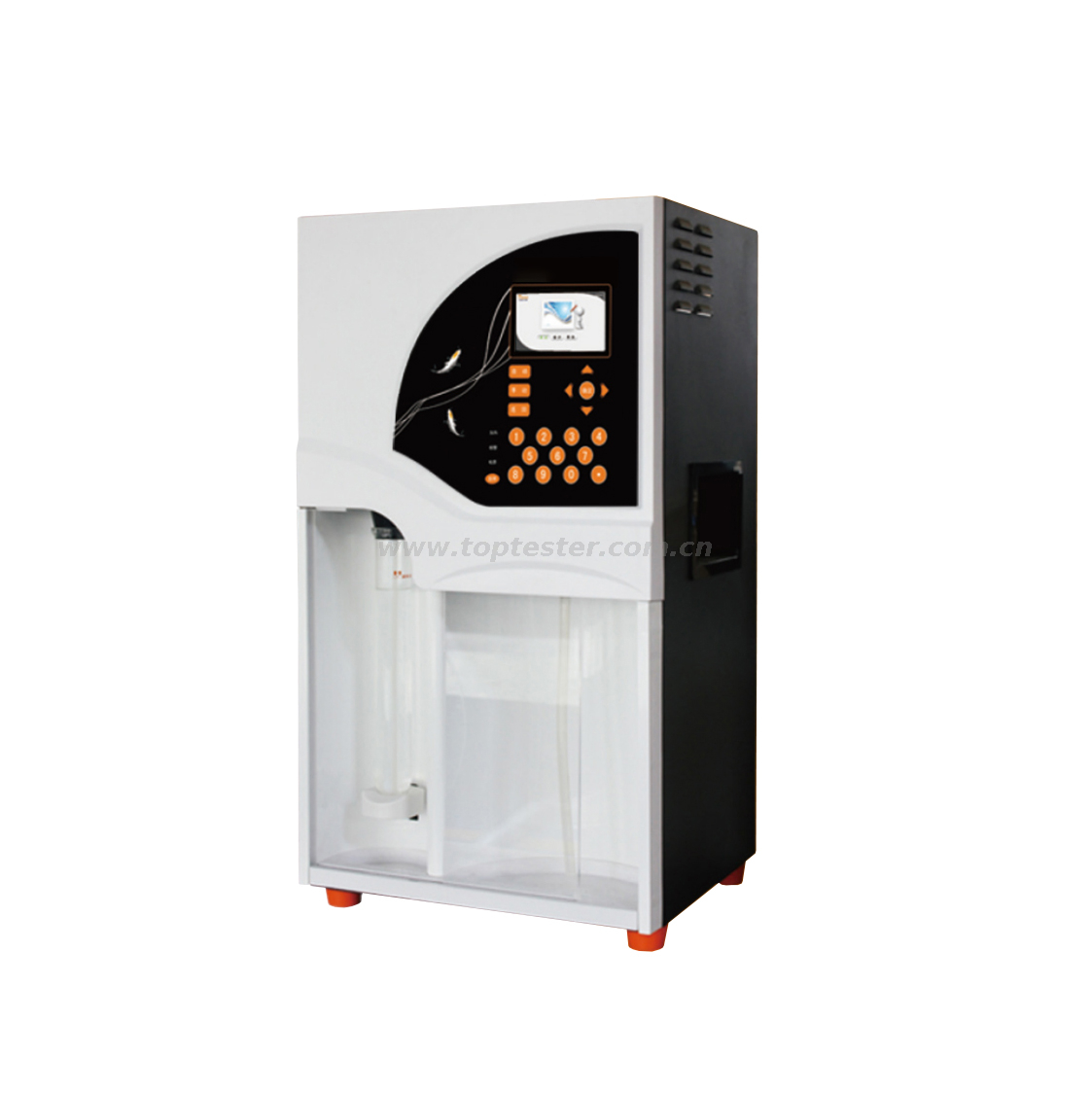

Auto Kjeldahl Distiller TP-9860
Home » Products » Elemental Analysis Series » Kjeldahl » Auto Kjeldahl Distiller TP-9860

Category List

Share to:

Auto Kjeldahl Distiller TP-9860

  • TP-9860
  • CHONGQING TOP
Availability:
Quantity:

Product Description

TOP TP9860 Auto Kjeldahl Distiller is designed to determine nitrogen content ofsamples base on Kjeldahl nitrogen determination method Fully intelligent software is able to complete sample distillation within minutes, boasts automatic regent quantification and filling,automatic test The distillation and condensation automatic cleaning system further enhances measurement precision; explicit interfaceis easy foroperation.lt is widely used in food processing.feed production, tobacco, livestock,soil fertility, environmental monitoring, medicine, agriculture, scientific research,teaching,quality control and other fields for the test of nitrogen or protein content, can also be used for the test of ammonium, volatile fattyacid / alkali, and so on



Characteristics

Display: 4.3 inch color screen

Manual/Automatic mode changeover free

Automatic Alkali pipeline washing function

Automatic or manual filling mode is optional according to test need

Distillation time can be edited freely, and automatic alarming upon completion

Automatic cleaning of control system and distiller, ensuring high measurement accuracy

Intelligent design of nitrogen tube peripheral facilities including safety designs and displacement hint

Intelligent cooling water control system achieves cooling water control and test

Emergency stop operation is able to deal with unexpected accidents

Automatic fault detection and intelligent audible and visual alarm system are available

Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, washing flow calibration

Safety door, digestion tube and cooling water condition is displayed at real time when running

Testing model is built in, for detect most functions condition



Features

Automatic accurate distribute alkali and boric acid solution

Perfect safety protection system gives distiller and tubes measurement and protection against over temperature and over pressure

Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, Washing flow calibration

Safety door, Digestion tube and cooling water condition is displayed at real

time when running

Technical data

Measuring range

0.1mg ~ 240mg N

Recovery

99.5%

Sample capacity

Solid 6g/sample, liquid 16mL/sample

Distillation speed

36min/sample

Cooling water consumption

1.5L/min

Operating mode

Manual/automatic mode

Display modes

4.3" LCD screen

Power supply

220VAC±10%, 50Hz

Power

1.3KW

Net weight

30 Kg

Dimensions

400mmx385mmx735mm
