Series ZYD-M Outdoor mobile double-stage vacuum transformer oil purifier

  • TOP OIL PURIFIER

Quantity:

Product Description

Application:

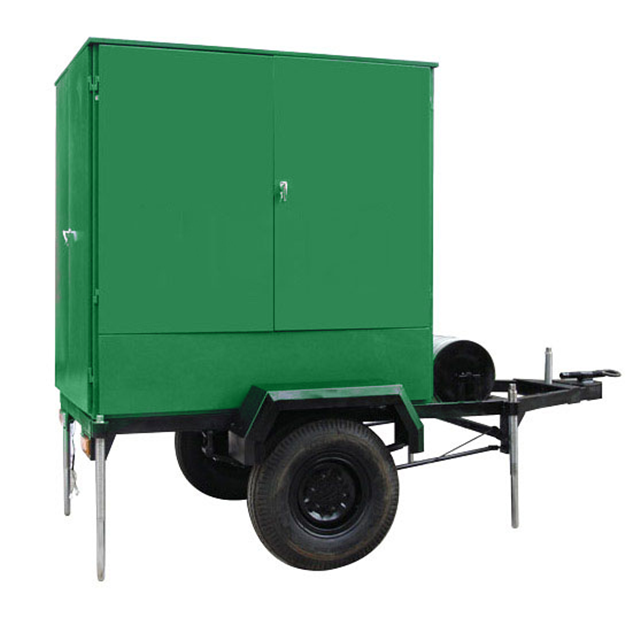

ZYD-M is outdoor usage mobile type double stage vacuum transformer oil purifier equipped with trailer which can move long distance, and equipped with weather proof, dust and water resistance enclosure. It is a creative design introducing domestic and international advanced technology. It is applied to process transformer oil and insulating oil from power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for on-site installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750KV. It can shorten the oil treatment period for transformer installation and maintenance.

Features:
1. ZYD-M Series is outdoor usage mobile type machine. Equipped with trailer, it moves easily and is convenient for outdoor use.
2. And it has double-stage high pumping speed vacuum system, multistage stage vacuum analytical separation system, it can quickly separate out water, gases, impurities, polar substances and other deteriorated materials.
3. Adopting the three-dimensional flash evaporation dehydration and degassing technology, it high efficiently separates water, gases from the oil, making the breakdown voltage rapidly increase to above 75KV.
4. Adopting the complex high speed degassing spiral flow structure, oil gas separate dual channel technology, redissolution technology in anti oil gas separation, it quickly removes various organic hydrocarbon gases, ensuring no acetylene and hydrogen in oil.
5. Adopting carbon fiber infrared heating, grouped ultra low surface load, PID constant temperature control and dual temperature flow protection technology. Inside the machine installed the the diameter increase oil flow direction turning overflow technology to prevent “dead oil area”, over-temperature and drying.
6. Adopting multistage high β value compound filtration system, linear coupling filter seal, it can effectively filter even the tiny particles mechanical impurities.
7. Specially made precise oil pump with low noise meeting environmental protection requirement.
8. Online filtering oil; with nobody watching is okay, and it can also be used for vacuum oiling the transformers etc and drying its hot oil.
9. Equipped with advanced infrared liquid level auto control system, auto defoaming control system, pressure protection system and safety interlock control to ensure that the equipment work for long time, safely and reliably.

Key words for ZY Series: mobile transformer oil purification machine, mobile transformer oil treatment, mobile type transformer oil purifier, transformer oil regeneration machine, oil purifier, transformer oil regeneration, transformer oil refinery, oil restoration, oil reconditioned, used oil recycling, oil regeneration, insulating oil purifier, transformer oil purifier, dielectric oil filtering machine, transformer oil filtration machine, oil conditioning, waste oil recycling equipment, transformer oil recycling, insulating oil reclamation unit, transformer Oil Reclaiming, online transformer oil purifier, purify transformer oil, oil filter, dielectric oil treatment, dielectric oil filter, vacuum transformer oil purifier, oil filtering machine, insulating oil recycling, used transformer oil filter machine, used oil purification equipment, used switchgear oil purification machine, power transmission oil filtering machine, vacuum transformer oil water separator, used transformer oil dehydration machine, insulating oil dehydrator, mini oil refinery, transformer oil recovery system, regeneration of transformer oil, transformer oil reclamation, transformer oil refining machine, vacuum transformer oil dehydration plant, insulating oil recycling machine, centrifugal insulation oil regeneration unit, centrifugal insulation oil reclaiming unit, centrifugal insulation oil recovery system, transformer oil processing machine, transformer oil conditioning system, waste dielectric oil filtration systems, zy transformer oil filtration purifier, vacuum transformer oil dehydrator,popular switchgear oil purifier,capacitor oil purifier,dielectric oil purifier unit,dielectric oil filtration plant,vacuum transformer oil treatment  ...


Technical Parameter

 Technical Parameter:
Item Unit ZYD-M-30 ZYD-M-50 ZYD-M-100 ZYD-M-150 ZYD-M-200 ZYD-M-250 ZYD-M-300
Flow rate L/min 30 50 100 150 200 250 300
Working vacuum degree MPa -0.08 -0.099
Working pressure MPa ≤0.3
Temperature range 20 80
Power supply
380V/50HZ/3Ph 5 wire(as customer’s requirement)
Normal working hour H  4000
Continuous working hour H 150
Working noise dBA 70 70 70 75 75 75 75
Heating power KW 28 30 45 60 75 90 120
Total power KW 35.5 37.5 52.5 71.4 86.5 102.5 135
Outlet(inlet) caliber   mm φ25 φ32 φ42 φ50 φ50 φ60 φ60
Weight Kg 600 800 1050 1400 1800 2000 2200
Size L mm 1500 1600 1800 1900 2000 2100 2200
W mm 800 850 1100 1150 1200 1200 1200
H mm 1600 1700 1900 2000 2100 2200 2300
Index after filtering Breakdown voltage kV ≥7
Moisture content PPM ≤3
Gas content % 0.1
