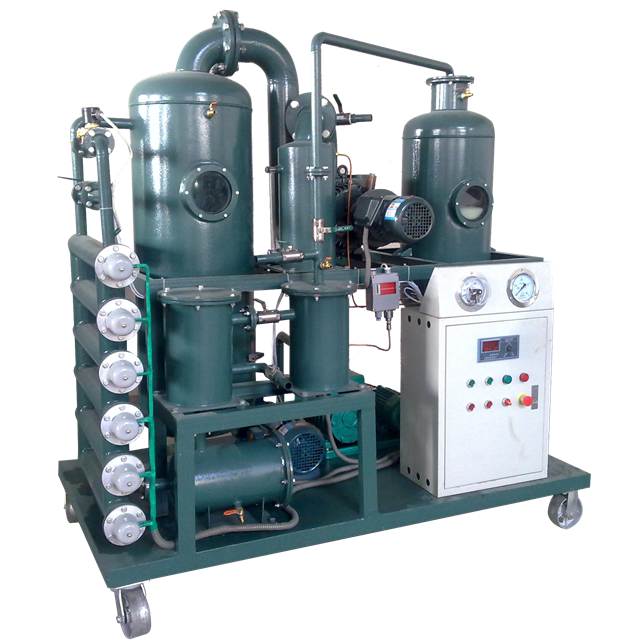

Series ZYD-I Transformer Oil Regeneration System

  • TOP OIL PURIFIER
Model:
Quantity:

Product Description

Application:
ZYD-I machine is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.

Features:
1. For special application, the operation can be controlled by P.L.C (Programmable Logic Controller) (ZYD-I-A Series).
2. Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.

Key words for ZY Series: mobile transformer oil purification machine, mobile transformer oil treatment, mobile type transformer oil purifier, transformer oil regeneration machine, oil purifier, transformer oil regeneration, transformer oil refinery, oil restoration, oil reconditioned, used oil recycling, oil regeneration, insulating oil purifier, transformer oil purifier, dielectric oil filtering machine, transformer oil filtration machine, oil conditioning, waste oil recycling equipment, transformer oil recycling, insulating oil reclamation unit, transformer Oil Reclaiming, online transformer oil purifier, purify transformer oil, oil filter, dielectric oil treatment, dielectric oil filter, vacuum transformer oil purifier, oil filtering machine, insulating oil recycling, used transformer oil filter machine, used oil purification equipment, used switchgear oil purification machine, power transmission oil filtering machine, vacuum transformer oil water separator, used transformer oil dehydration machine, insulating oil dehydrator, mini oil refinery, transformer oil recovery system, regeneration of transformer oil, transformer oil reclamation, transformer oil refining machine, vacuum transformer oil dehydration plant, insulating oil recycling machine, centrifugal insulation oil regeneration unit, centrifugal insulation oil reclaiming unit, centrifugal insulation oil recovery system, transformer oil processing machine, transformer oil conditioning system, waste dielectric oil filtration systems, zy transformer oil filtration purifier, vacuum transformer oil dehydrator,popular switchgear oil purifier,capacitor oil purifier,dielectric oil purifier unit,dielectric oil filtration plant,vacuum transformer oil treatment  ...

Technical Parameter

Parameter Unit ZYD-I-30 ZYD-I-50 ZYD-I-100 ZYD-I-150 ZYD-I-200 ZYD-I-250 ZYD-I-300
Flow rate L/h 1800 3000 6000 9000 12000 15000 18000
Working vacuum MPa -0.08~-0.099
Working pressure MPa 0.3
Temperature range 20  80
Power
3 ph 380V 50Hz (Or as needed)
Working noise dB(A) 75 75 75 75 80 80 80
Heating power kW 30 30 45 60 75 90 120
Total power kW 35.5 37.5 52.5 71.4 86.5 102.5 135
Oil Inlet/Outlet   mm φ25 φ32 φ42 φ50 φ50 φ60 φ60
Weight Kg 600 800 1050 1400 1800 2000 2200
Overall Length mm 1050 1100 1200 1450 1600 1800 1900

Width mm 750 800 950 950 1100 1200 1200

Height mm 1350 1400 1500 1650 1800 1900 1900

Item Unit After treatment
Breakdown Voltage kV 75
Moisture content PPM 3
Gas content % 0.1
Impurity size micron 1 (no free carbon)
IFT dynes/cm 40
Acid value mg KOH/g 0.03
Dielectric loss factors tgδ(90) 0.001
