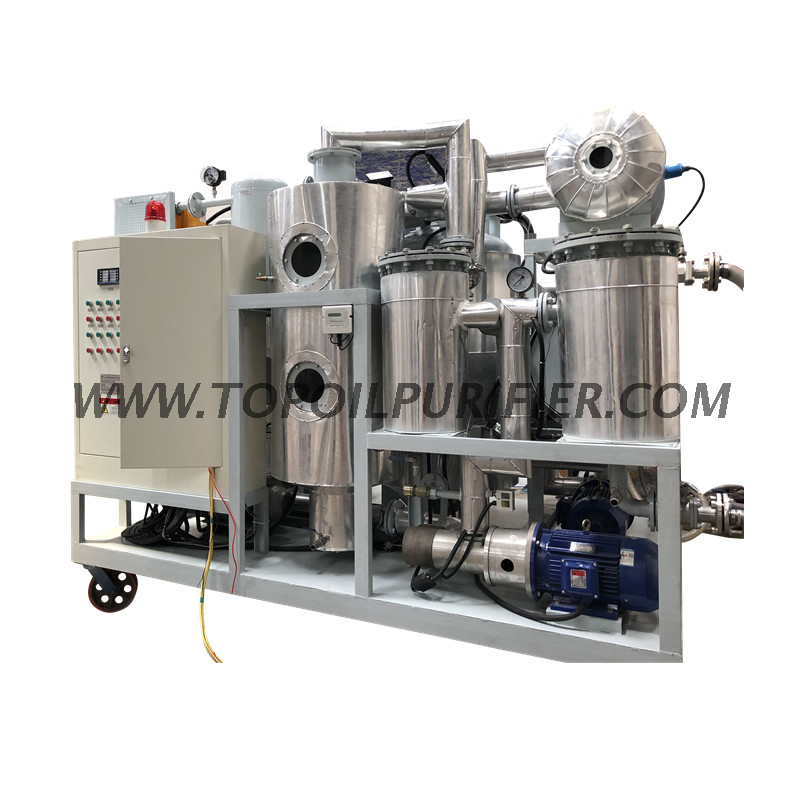

Series TYR-S Oil Decoloration Machine for easily solidify oil

  • TYR-S

  • TOP OIL PURIFIER

Availability:
Quantity:

Product Description

Application:

TYR-S Series Multi-functional Decoloration Machine utilizes the physical treatment, on the premise of without affecting the components and the performance of the oil especially for the oil which is easily solidify like palm sterin, animial oil/fat .The whole system including pipes are designed with heater.  It can  rapidly remove the color, moisture, impurities (particulate impurities and mechanical impurities) and gases(acetylene, hydrogen, methane etc) and other harmful ingredients, etc. in the oils, thus change the black oil color to original yellow, improving the quality of the oil and recovering oil’s viscosity, flash point and properties to make the oil purified and regenerated, the treated oil is very clear and transparent; and can effectively ensure the normal operation of equipment; meanwhile improve the life cycle and avoid accidents.

Oil type to be treated: transformer insualting oil,lubricating oil, hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil, base oil, diesel fuel oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry.

Remark:  It can also be equipped with waste oil distillation plant to highly improve the dark oil color after distillation process.

Features:

This machine adopts the the latest micro-filtration technology,which is a multi-functional purification system with vacuum oil filter, fine filter and decolorizing device.It uses pure physical treatment to remove water, gases, impurities and decolor,which will not affect the composition and performance of the oil. Equipped with chain protection device, the machine is easy to operate, safe and reliable.



Working Principle

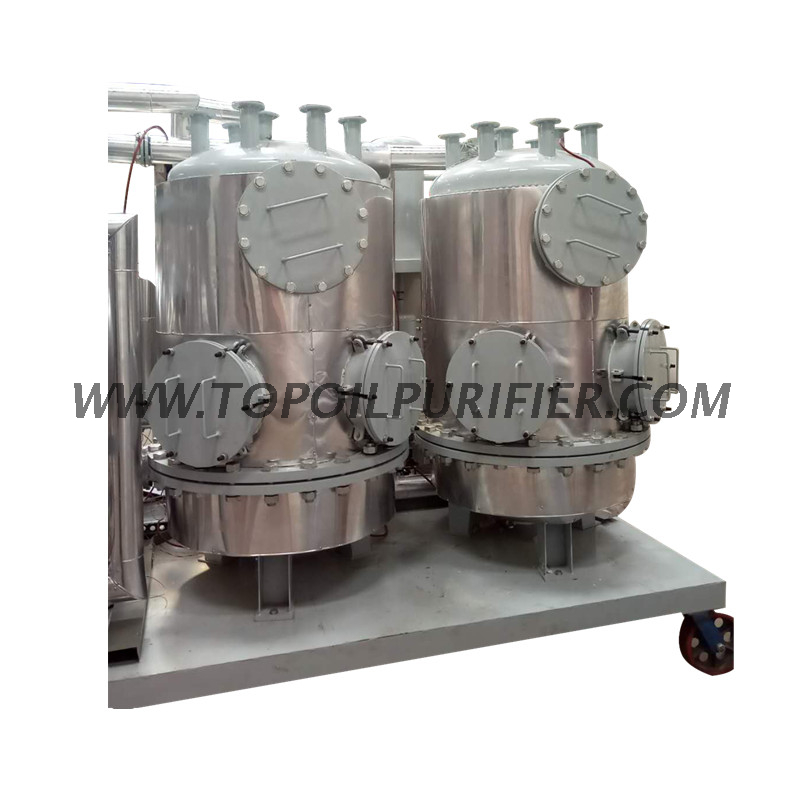

When the equipment works, the oil is transported through the primary filter by the oil inlet pump to remove large particles and impurities and can protect the oil inlet pump, then the oil runs into the preheater for heating, so as to improve the liquidity of the oil, which is good for the next processing; after heating, the oil runs through the secondary filter by the effect of pressure to remove small particles in the oil, and then the oil enters the vacuum vessel where adopts the molecular separation technology and with certain vacuum and temperature condition, forming a large area of multi-level vacuum evaporation space. This space can provide the oil a a retention process with a large aeration area and aeration time, and ensure a effective separation of oil and gases or water vapors. The mixture of evaporated water vapor and gases is condensed into liquid through the cooler, and the gas is pumped out by the vacuum pump.In this way, it completes the dehydration and degassing treatment. The high temperature water vapor and other gases evaporated from the vacuum vessel are cooled for two times by the condensing cooler. Most of the gas is reduced to water and stored in the water receiver. After being repeatedly cooled and dehumidification, the uncondensed gas is discharged from the exhaust port of the vacuum pump. The dehydrated oil is exported out through the oil outlet pump, and runs through the fine fitler to remove the fine impurities and finish the fitleration process of dehydration and degassing. The pre-treated oil is returned to the oil storage tank, and then transported to the regeneration device by the oil pump. After a period of adsorption and neutralization treatment, it is sucked and stored in the tank by the vacuum vessel and transported to the fine filter through the oil pump and discharged from the oil outlet.Then we get the clean oil.





Technical Parameter

Parameters

Unit

TYR-S

-1

TYR-S

-2

TYR-S

-3

TYR-S

-5

TYR-S

-10

TYR-S

-15

TYR-S

-20

TYR-S

-30

TYR-S

-50

Treatment Capacity

Ton/day

(8 hr)

1

2

3

5

10

15

20

30

50

Power Supply


380V/50HZ/3Phase(Customizable)

Working Noise

dB

(A)

≤65

Trouble-free Working Time

H

≥ 4000

Continuous Working Time

H

≥150

Inlet (outlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф42

Ф50

Ф50

Ф60

Weight

kg

1500

2000

2500

3000

3500

4000

4500

5000

5500

Size

Length

mm

1800

1850

1900

1950

2000

2200

2300

2400

2500

Width

mm

1300

1350

1400

1450

1500

1600

1600

1700

1800

Height

mm

2300

2300

2300

2400

2500

2700

2700

2700

2700

Guarantee value

Color

L

≤ 1-3

Impurity

μm

≤1(Customizable)
