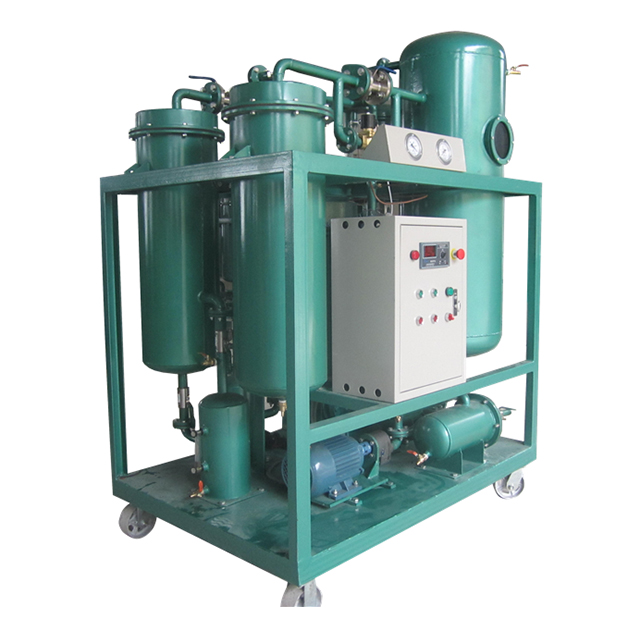

Series TY-A fully automatic turbine oil purifier

  • TOP OIL PURIFIER

Model :
Quantity:

Product Description

Application:
TY-A fully automatic turbine oil purifier adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. It applies to on-line processing of the turbine oil of the steam engine, gas turbine and water turbine in the field of electricity, chemicals, paper making, metallurgical industries. It can not only ensure the regular work of adjusting system and lubricating system, but also purify low viscosity oil and coolant oil.

Features:
1. Equipped with PLC fully automatic control system.
2. Integrates advantages of gravity method, gasification method, coalescence separation method, vacuum separation, mechanical filtration into one.With the technology of vacuum drying and demulsification, it can separate a large mount of water from the oil, even the micro quantity of moisture. It is good at dewatering and demulsifying, which can make the turbid emulsified oil become clear.
3. Equipped with vacuum analytical evaporation system which can remove the micro quantity of water from the oil and ensure the water content index in the oil. It won’t change the physical and chemical property of the oil, and it can extend the oil service life.
4. Low working noise meets the environmental protection requirement.
5. Precise multi-stage filters can effectively remove all kinds of mechanical impurities, preciser one by one, big impurity holding capacity and long service life.
6. Advanced infrared liquid level auto control system, automatic sound and light alarm system, and pressure protection device to ensure the safe and stable operation of machine.
7. Can online process turbine oil and low viscosity lubricants with unattended operation.

Key words: gas turbine oil filtration system, steam turbine oil filter, steam turbine oil purifier, turbine oil cleaning, turbine oil purifier, turbine oil filtration, turbine oil purification machine, turbine oil filter, oil purification, turbine oil purification, oil purifier, oil purifier machine, turbine oil purification system, turbine oil conditioner, oil filter, turbine oil flushing, turbine oil filtration, polishing machine, oil refinery, recycling plant, turbine oil, oil filter, turbine oil dewatering plant, vacuum turbine oil purifier, steam turbine filter, gas turbine oil treatment unit, lubricating oil purifier, turbine oil purification machine, gas turbine oil disposal machine, turbine oil water separation machine, turbine oil flushing equipment, gas turbine oil cleaning system, vacuum turbine oil purifier, vacuum turbine oil dehydrator, gas turbine oil filter unit, turbine oil renewable, turbine oil process, dirty oil cleaning machine, gas turbine oil cleaning machine separator, turbine oil water separator filter machine, turbine oil demulsification plant, lubricating oil demulsification machine, lube oil recondition machine, turbine oil recondition machine, turbine oil demulsification, coalescing and vacuum turbine oil purifier, lubricating oil turbine oil purifier, turbine oil purifying system, turbine oil purification unit, remove water from oil, turbine oil restore system, turbine oil reclamation machine, portable turbine oil reconditioning equipment, turbine oil polishing,seriously emulsified turbine oil treatment equipment...


Technical Parameter

Item Unit TY-A-10 TY-A-20 TY-A-30 TY-A-50 TY-A-100 TY-A-150 TY-A-200 TY-A-300
Flow rate L/min 10 20 30 50 100 150 200 300
Vacuum degree MPa -0.06~–0.095
Working pressure MPa ≤ 0.4
Temperature degree
20 ~80
Power supply
380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise dB(A) ≤65~80
Working time H  4000
Continuous working time H 150
Electric heating degree kW 12 15 18 24 45 60 72 84
Total electric power kW 14 17 20 27 48 66 81 97
Outlet(inlet)caliber mm Φ25 Φ25 Φ25 Φ32 Φ42 Φ50 Φ50 Φ60
Weight kg 400 450 500 600 800 1000 1100 1550
Size L mm 1500 1550 1600 1650 1700 1750 1900 2000

W mm 800 850 900 950 1000 1200 1300 1350

H mm 1600 1650 1700 1750 1800 1800 2000 2100
 Index after filtering Moisture content PPM 50

Gas content % 0.1

Demulsification value min ≤15

Degree of cleanliness NAS 1638 4

Impurity size μm 1((Customerizable)
