Series COP -A fully automatic cooking oil filtration system

  • TOP OIL PURIFIER

Model :
Quantity:

Product Description

Application

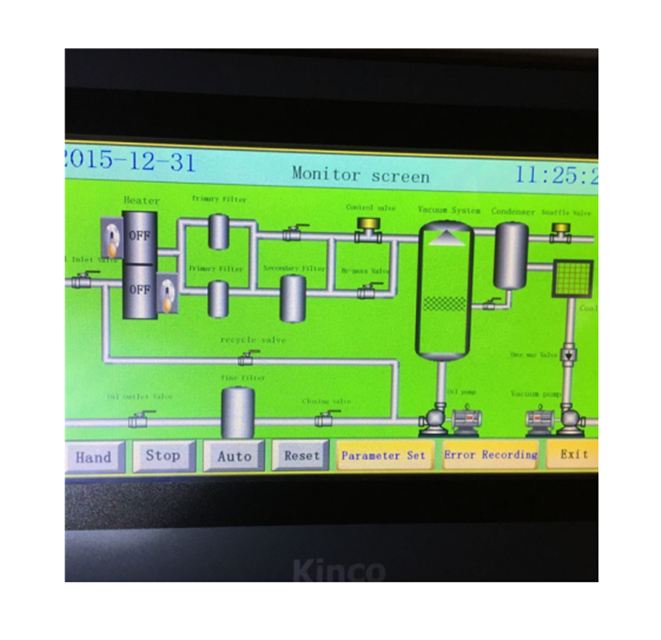

COP-A series is of fully automatic operation. It adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process.
It is mainly used for purifying UCO used cooking oil, vegetable oil, KFC oil, edible oil, rape oil, sesame oil, peanut oil, coconut oil, beam oil, kitchen oil, bio-diesel oil, plant oil, wood oil etc. It dewaters, deodorizes, and eliminates impurities highly effectively. According to the cooking oil nature, the used cooking oil includes high content water, more acid matters, much impurity and offensive odor. This machine adopts plate pressure system and can separate the impurities and water from the oil quickly and effectively. Added two primaries filter and fine filter, it can remove impurities thoroughly. And the machine adopts high vacuum system to dewater and deodorize. In addition, this machine uses stainless steel filter elements, which resists the acid in oil strongly. After the used cooking oil is recycled by machine, it will become clear and fresh.

Features
1. Highly effective vacuum dewatering, deodorizing, and impurities removing system.
2. It adopts plate pressure system with the strong ability to filter the particles and impurities completely.
3. It has the back flush system which can clean the filter elements automatically.
4. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.
5. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.
6. Fully automatic operation, convenient, reliable, and safe.

cooking oil cleaning machine, cooking oil filter machine, used vegetable oil filtering machine, used edible oil purifier, used cooking oil purification machine, used cooking oil recycling machine, cooking oil purifier, cooking oil filtration machine, cooking oil recycling machine, used cooking oil filter machine, cooking oil filter, used cooking oil purifier, oil recycling machine, cooking oil cleaning, cooking oil reprocessing, used vegetable oil filter, cooking oil cleaner, oil press machine, used cooking oil price, frying oil filter, coconut oil filter, edible oil recycling, vegetable oil processing plant, cooking oil refinery, vegetable oil refinery equipment, palm oil processing machine, edible oil refinery plant, olive oil filter machine, frying oil filter system, oil cleaning machine, vegetable oil refinery plant, vegetable oil filtration machine, used vegetable oil processing machines, vegetable oil filter, coconut oil filter machine, vacuum deodorization oil machines, animal oil purifying, animal oil filtering, oil deodorizing machinery, vegetable oil deodorizer, trench oil cleaning, biodiesel oil filter plant, used cooking oil filter machine to biodiesel, food oil purifier, used oil recycling, used mustard oil filtering machine, used oil regeneration system,cooking oil regeneration, Cooking oil reclaiming machine, portable oil refinery plant, coconut oil filtration machine, used edible oil refinery plant, portable cooking oil purifying machine, portable cooking oil purifying machine, coconut oil filter machine, deep fryer oil filter machine,used cooking oil recycling for biodiesel,filtering machines frying oil,frying oil water separator,Vacuum peanut oil filter,biodiesel filtration,stainless steel waste cooking oil filter machine,used vegetable oil processing machine,uco oil refinery,equipment to recycle used cooking oil

Technical Parameter

Item Unit COP-A-10 COP-A-20 COP-A-30 COP-A-50 COP-A-100 COP-A-150 COP-A-200 COP-A-300
Flow rate L/min 10 20 30 50 100 150 200 300
Working vacuum Mpa -0.06 ~- 0.095
Working pressure Mpa ≤0.4
Temperature 0~100
Power supply
380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise dB(A) ≤65~80
Working time H  4000
Continuous working time H 150
Working noise dB(A) ≤75 ≤75 ≤75 ≤78 ≤78 ≤78 ≤80 ≤82
Electric heating power kW 36 40 45 72 80 90 120 135
Total electric power kW 38 42 47 75 87 101 135 147
Outlet(inlet) caliber mm Ф25 Ф25 Ф25 Ф32 Ф42 Ф50 Ф50 Ф60
Weight kg 350 380 400 450 550 650 700 750
Size L mm 1500 1500 1500 1600 1750 1900 1950 2100

W mm 1000 1050 1050 1150 1150 1600 1600 1600

H mm 1600 1600 1650 1700 1750 1950 1950 2000
Index after filtering Moisture content PPM 50

Gas content % 0.1

Impurity size μm 1(Customerizable)

Demulsification value
(fresh oil)≤15min, (oil in operation)≤30mi

Cleanness degree
≤4NAS 1638
