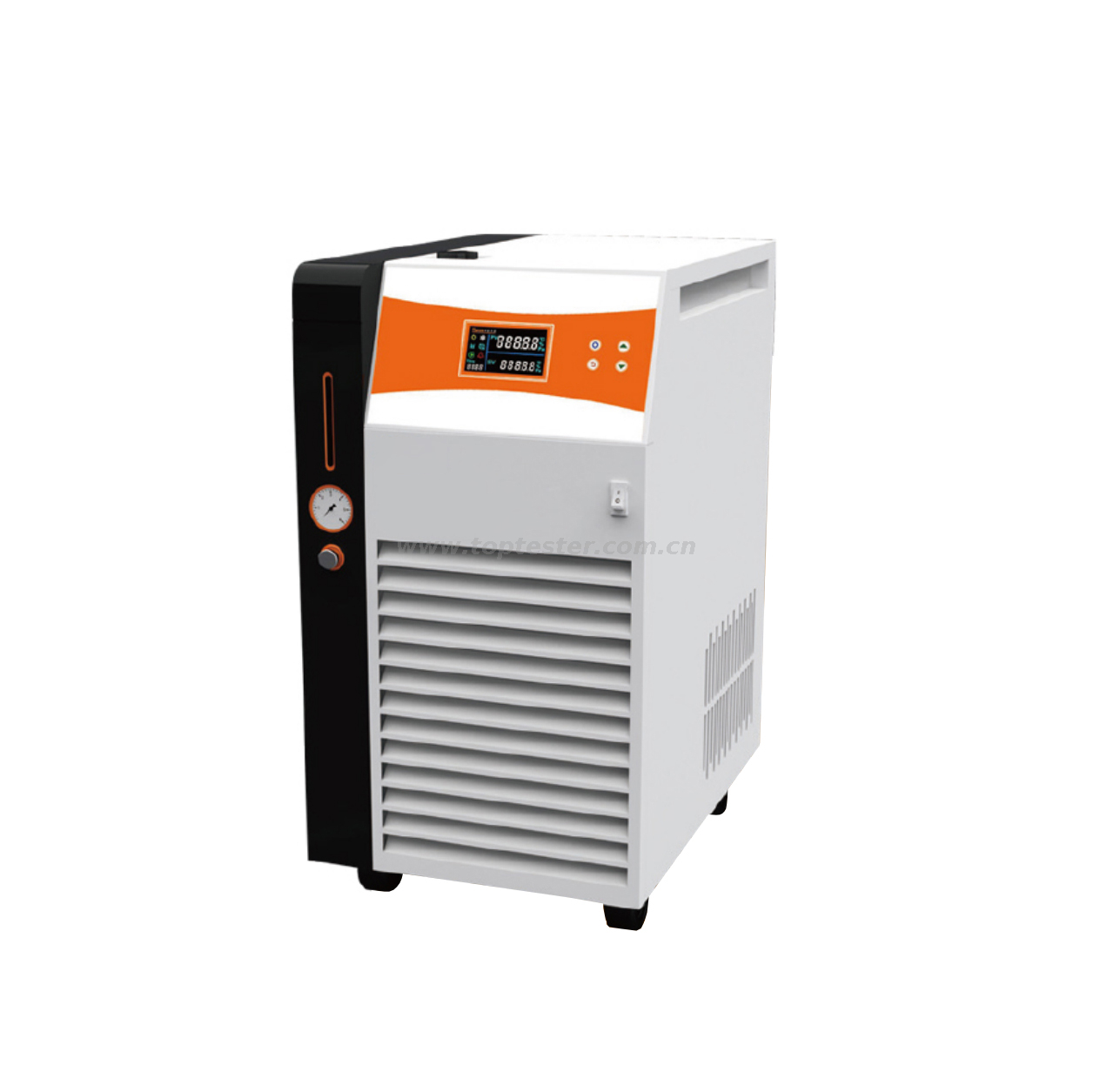

Recirculating Chiller TP-1300
Home » Products » Chromatograph / Spectrometer » UV-Visible Spectrophotometer » Recirculating Chiller TP-1300

Category List

Share to:

Recirculating Chiller TP-1300

  • TP-1300
  • CHONGQING TOP
Availability:
Quantity:

Product Description

Corollary Equipment

Kjeldahl Apparatus, Soxhlet Extractor, Crude Fiber Analyzer, AAS, ICP-MS, Electrophoresis System, Rheometer, Automatic Synthesizer, Fermentation Apparatus, Rotary Evaporator, Extraction and Condensation Device, SPE Apparatus.



Characteristics

Cooling system adopt TECUMSEH compressor in order to ensure cooling efficiency, and reduce noise.

PID temperature controlling technology is adopted. Cooling method is not the traditional stat-stop type, EEV technology improve the stability.

Over-temperature protection and auto-alarm function is used in refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value.

Water level observation window and automatic water level detection device, automatic alarm when low liquid level.

Water current detection device is adopted. When external cycle closed or blocked, internal cycle will be switched automatically.

High performance circulating water pump guarantee the long time continuous running, and good sealing avoid leakage. The pressure of pump is 0-1.5 par, adjustment is available by rotary knob. Pressure value is displayed.

Color LCD screen display more running data and dynamic identifier. Easy to monitor.



Technical data

Temperature control range

5 °C ~ 40 °C

Temperature control

HOT gas by-gas and PID combined

Temperature stability

±0.3 °C

Temperature sensor

PT100

Display resolution

0.1 °C

Pump flow rate

20L/min

Cooling capacity

1.2Kw

Refrigerant

R134a

Pump Pressure

0-1.5 bar,adjustable

Pumping head

15m

volume

8L

Dimensions L x W x H (cm)

55 x 40 x 65

Power supply

220VAC±10% 50Hz
