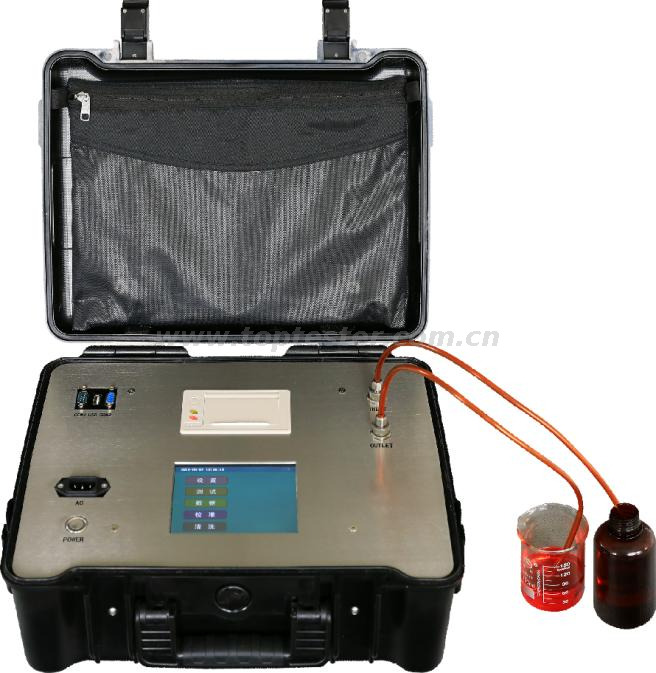

PTT-P3 Portable Oil Quality Test Equipment

Feature
1.The test principle of the light resistance (shading) method specified by the International Hydraulic Standards Committee.
2.High-precision laser sensor, wide test range, stable performance, low noise and high resolution.
3.High-precision bidirectional plunger metering pump sampling method, adjustable sampling speed, high sampling volume accuracy.
4.The pipeline is made of 316L and PTFE material, which is corrosion-resistant and meets the detection of various organic solvents and oils.
5.Used for laboratory or field measurement, optional pressure reducing device for online high pressure measurement.
6.Can be connected to external pressure chamber to form positive/negative pressure to realize the detection of high viscosity samples and sample degassing.
7.Standard sampling bottles, sampling cups and other sampling containers can be used, or directly connected to the hydraulic system for online testing to meet the testing requirements of different industries.
8. Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration.
9.Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E and ГOCT17216 and other commonly used standards, one test can give data results under all built-in standards, support custom standard testing, and can be set according to customer needs standard.
10. 1000 particle size channels can be set for easy particle size analysis
11.Built-in data analysis system, which can automatically determine the sample grade according to the standard, with automatic data processing and printing functions.
12.Color touch screen operation, Chinese and English input, with preset, input, modification, storage functions, convenient and fast operation.
13.With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and can also use USB for data storage.
14.Built-in lithium battery, suitable for field work, can be used without external power supply.
15.Embedded design, high-strength shell, easy to carry, suitable for all kinds of construction machinery.
Technical indicators
■ Light source: semiconductor laser
■ Particle size range: 0.8-600um (depending on different sensors)
■Sensitivity: 0.1μm
■Customized detection channel: 8+8 channels, set the particle size arbitrarily
■Sampling volume: 0.2-1000ml, interval 0.1mL
■Sampling accuracy: better than ±1%
■Sampling speed: 5-80mL/min
■Cleaning speed: 5-80mL/min
■Cleaning volume: can be set between 0~90mL
■Counting accuracy: <±5%
■Resolution: ≤10%
■Repeatability: RSD < 2%
■Limited coincidence error: 1200-40000 capsules/mL
■Offline detection of viscosity: ≤100cSt (if the viscosity is too large, an air pressure chamber can be selected)
■Pressure range: low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)
■On-line detection interval time: set arbitrarily
■Test sample temperature: 0℃~80℃
■Working temperature: -20℃~60℃
■Storage temperature: -30℃~80℃
■Power supply: AC100-240V, 50/60Hz
■Battery capacity: 5200mAh
■Battery runtime: 6-8 hours
■Dimensions: 410×320×165mm
■Weight: 8.5kg
