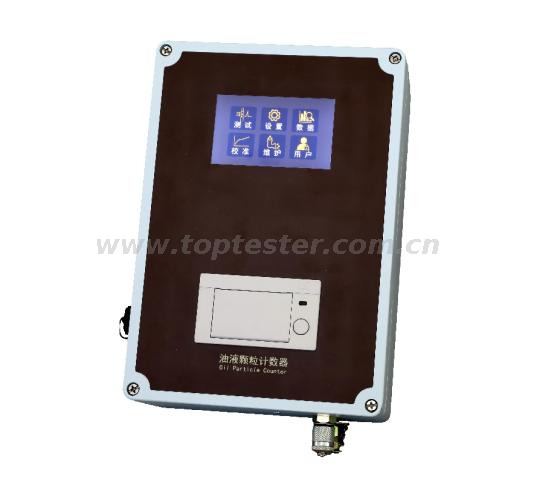

PTT-O Online Particle Counter

Application

PTT-O online particle counter is specially developed for the level of polluted particles in liquid using the photoresist (shading) method specified by the International Hydraulic Standards Committee and according to national and international standards such as GB/T 18854-2002 (ISO11171-1999). detection device. Provides fast, accurate, reliable, and repeatable test results. The operation is simple and convenient, and it is suitable for online monitoring of various oil systems. It is also possible to connect two (or more) slaves to the same host or platform for comparison tests, with simple operation and flexible combinations. It can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, water treatment, machinery, automobile manufacturing and other fields.
Feature
1.Adopt the counting principle of the light resistance (shading) method specified by the International Hydraulic Standards Committee.
2.High-precision laser sensor, wide test range, stable performance, low noise and high resolution.
3.Using high-precision double plunger pump, stable sampling speed and high sampling accuracy.
4.Built-in decompression device for online high pressure test.
5.Built-in GJB-420A, GJB-420B, SAE4059E, ISO4406, GB/T14039, NAS1638 and ГOST17216 and other common standards, support custom standard testing, and can set the required standards according to customer needs.
6.Built-in data analysis system, which can automatically determine the sample grade according to the standard, continuously monitor the hydraulic system and have the alarm function).
7.Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration
8.Continuous automatic online detection can be realized, and the detection interval can be arbitrarily set.
9.With RS232, RS485 and USB interfaces, it can be connected to a computer or laboratory platform, and can also be connected to an industrial field bus.
10.With data storage and printing functions, it is convenient for data sorting and archiving
11.It can be used on a single machine, and can be used online to calculate the filtering rate. Multiple interconnected remote upper computers can be used for unified monitoring. It can generate graphs, historical queries, data export, etc., with variable combinations and strong application expansion.
12.Instrument functions and dimensions can be customized according to customer needs.
13.High-strength metal shell, suitable for use in harsh environments such as on-site.
Technical indicators
■ Light source: semiconductor laser
■Particle size range: 0.8µm ~ 500µm (depending on the selected sensor)
■Sensitivity: 1μm (ISO4402) or 4μm (c)
■Sampling volume: 0.2～1000mL (fixed 10)
■Sampling volume accuracy: better than ±1%
■Detection speed: 20mL/min or set according to customer needs
■Limited coincidence error: 40000 capsules/mL
■Repeatability: RSD<2%
■Resolution: better than 10%
■Counting accuracy: better than 10% (less than ±0.1 pollution degree level)
■ On-line detection pressure: 0.1～0.6Mpa (the maximum pressure of the optional decompression device can reach 42MPa)
■Online detection interval time: 1 second to 23 hours, 59 minutes and 59 seconds
■Detection channel: 8 channels can set particle size arbitrarily
■Protection level: IP56
■Test sample temperature: 0℃～80℃
■Working temperature: -20℃～60℃
■Power supply: 100～240VAC or DC24V
