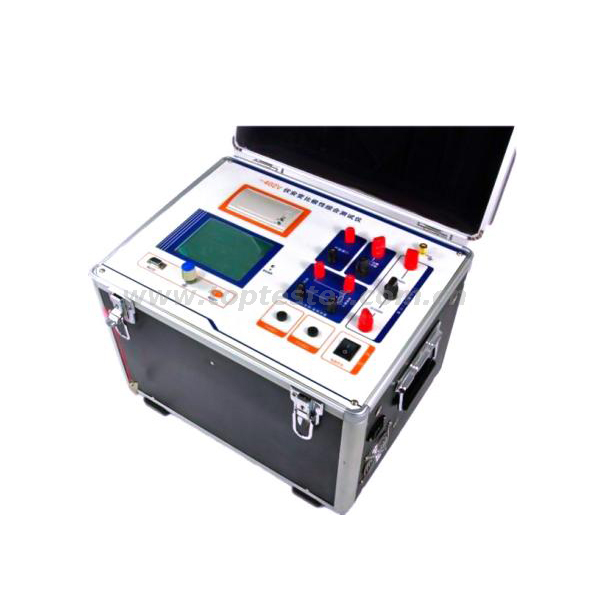

CT/PT Transformer Characteristics Comprehensive Tester TPVA-402

  • TPVA-402
  • TOP OIL PURIFIER
Availability:
Quantity:

Product Description

Introduction

TPVA-402 is a fully automatic transformer comprehensive tester. It can carry out full range tests such as CT/PT volt-ampere characteristic test, CT/PT Polarity test, CT/PT Turn ratio polarity test, automatical calculation of error curve for any point of CT.



Technical Parameters


Input Voltage

Output Scope

Measuring Scope

Measuring Degree

Main Body

220V

0600V,020A

0600V,020A

0.5%

380V

01000V,020A

01000V,020A

0.5%

220V

0600A

0600A

Turn ratio test precision 1%

External Voltage Booster

220V

01650V,03A

01650V,03A

0.5%

380V

02000V,03A

02000V,03A

0.5%

External Current Booster

220V

01000A

01000A

Turn ratio test precision 1%

External Voltage Regulator



01000V,030A

0.5%

Working Power

AC220V/380V,50HZ

Size

420×330×320mm

Weight

24kg


Technical parameters


Input voltage Output range Measurement range Measurement degree
Main instrument 220V 0~600V,0~20A 0~600V,0~20A 0.5%

380V 0~1000V,0~20A 0~1000V,0~20A 0.5%

220V 0~600A 0~600A Change ratio measuring accurate 1%
External up-voltage machine 220V 0~1650V, 0~3A 0~1650V, 0~3A 0.5%

380V 0~2000, 0~3A 0~2000, 0~3A 0.5%
External up-flow machine 220V 0~1000A 0~1000A Change ratio measuring accurate 1%
External voltage regulator

0~1000V,0~30A 0.5%
Work power of instrument AC220V380V50HZ Dimensions: 420x330x320mm
Weight: 24kg
