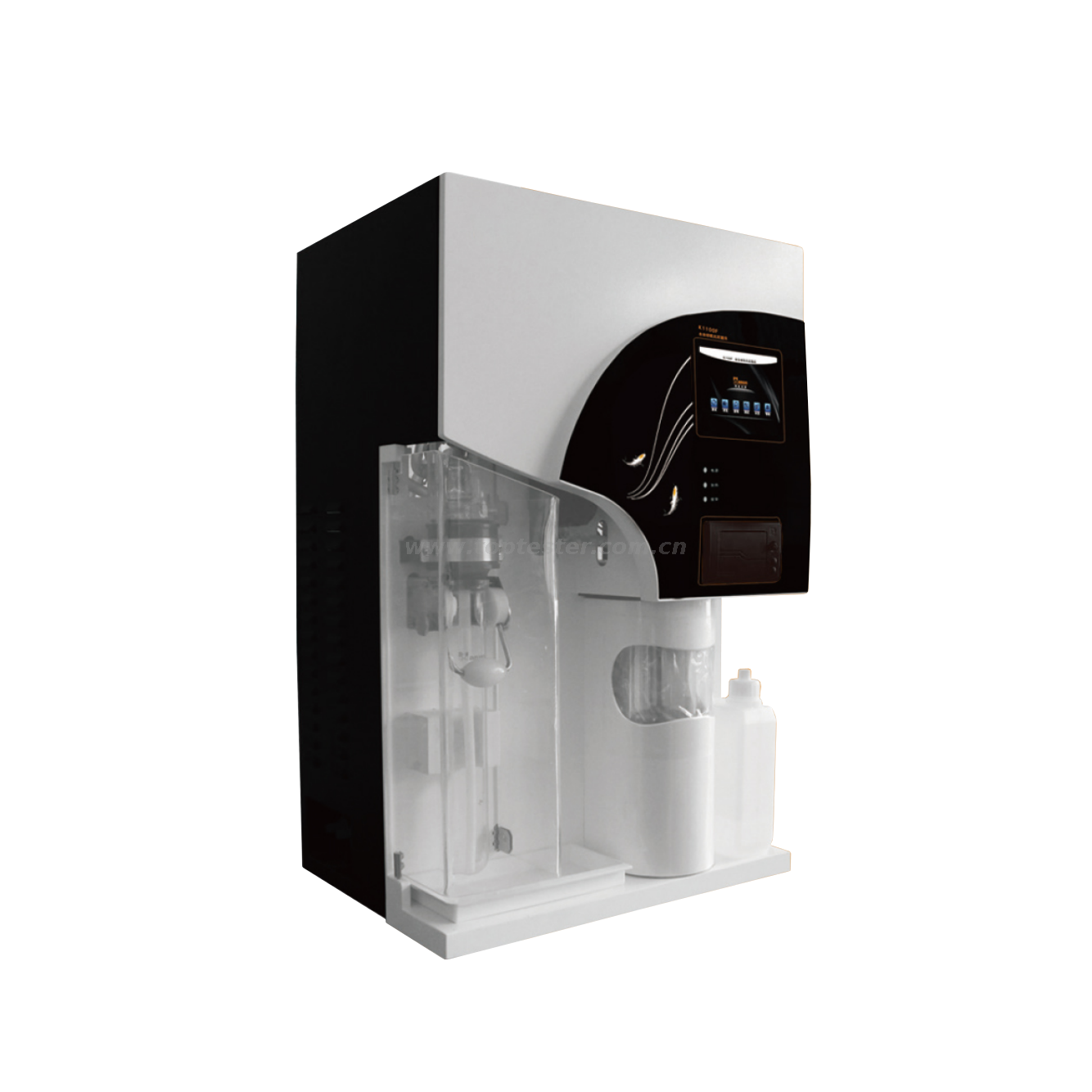

TOP TP1200F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It' s equipped with the latest
core control system, powerful automation and highquality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and realtime detection of condensation temperature. Highaccuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.
• Automatic distillation, titration, calculation, printing, drainand cleaning function, safety and savingtime.
• Visibletitration cup design gives operatorrealtime control of the whole test process.
• Steam flow is controllable, satisfying differenttest requirements.
• Regent barrel enjoys fluid absence warning function, ensuring smooth test going.
• Highprecision charging pump and titration system ensure test results accuracy.
• Large LCD touch screen gives visual operationand abundant information,enabling user to have a good commandof it.
• USB or RS485 interface is optional for PC connection.
• Distilled liquid temperature is detected real time. Emergency stop against temp anomaly.
• Double distillation modelmeets different experiments, to retard the speed of acidbase reaction.
• Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
• Printer is built in.
Complete microcomputer control
Automatic completion of distillation, titration,calculation, printing, waste discharge and multiple protections, i.e.failure selfdetection,hints of condensed water shortage, displacement of safety door and digestion tube and so on.
Large LCD Touch Screen Panel
Large LCD touch screen gives visual operation and
abundant information,enabling user to have a good
command of it.
Complete compatible design
Compatible with congeneric products perfectly
・ Compatible with(p42mm digestion tube
・ Titration while distillation, enhance the efficiency rapidly.
・ User friendly design, color touch screen, easy for operating
・ Faster ARM system, faster operating rate
・ Digester model SH220F and SH420F is matching K1100F, with(p42 digestion tube
0.1mg 〜240mg N
Average value relative error ≤±0.5%
Water consumption in the distillation process
Data storage capacity
