Strong Current Generator SLQ

  • SLQ

  • TOP OIL PURIFIER

Availability:
Quantity:

Product Description

1. Safety Warnings

1) The test set must be connected to earth reliably before use

2) The output terminals should be clean before switching on

3) The test set should be in power off before make connections for the test

4) After the high current output the metal terminals are very hot. It is forbid to touch those parts

5) It is forbid to touch the terminals or high current circuit when test set is switched to ON position

6) The duty cycle should not be exceeded

7) Any replacement should be made when test set is switched off

8) The test set should never be connected to the live power line



Warnings should be read and understood well before using the test set.



2. Introduction

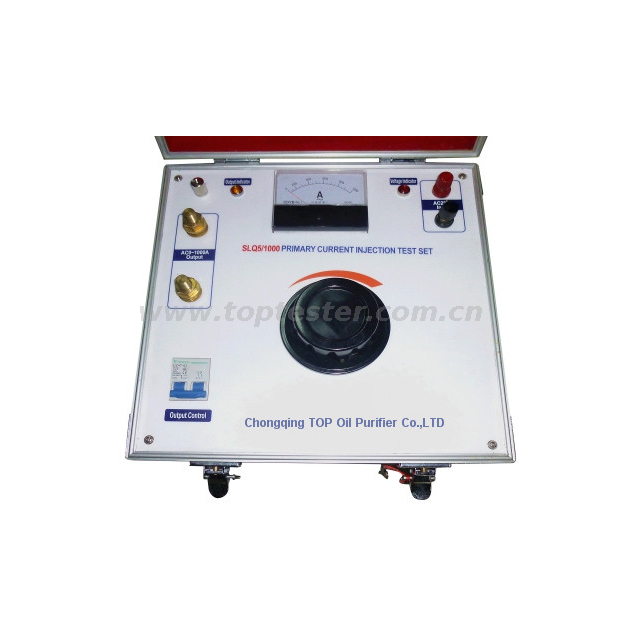

SLQ series primary current injection tester is applied in power system for circuit breaker test, protection system test and current transformer test. The current injection tester generates a high current from power supply to simulate the rated current or fault current in the primary circuit of power equipment.



3. Technique Index

1 Power supply: AC220V

2 Maximum output current: 2000A.

  Maximum load voltage 5V

  Maximum output capacity 5KVA

3 Impendence voltage: 8%

4 Idle current: 6%

5 Current distortion <5%


Technical parameters

Type Rating capacity
(KVA)
Rating input of converter Rating output of converter Impedance voltage  %     Idle current   Mode of structure

Booster Converter Current
(A)
Voltage
(V
Current
 (KA)
Voltage
 (V)



SLQ-3/500 3 3 13.6 220 0.5 6 8 6 Integral style
SLQ -5/1000 5 5 22.7 220 1 5 8 6 Integral/separated style
SLQ -15/1000 15 15 68.2 220 1 15 8 6 Separated style
SLQ-10/2000 10 10 45.5 220 2 5 8 6 Separated style
SLQ -15/3000 15 15 68.2 220 3 5 8 6 Separated style
SLQ -20/4000 20 20 50 400 4 5 8 6 Separated style
SLQ -30/5000 30 30 75 400 5 6 8 6 Separated style
SLQ -28/7000 28 28 70 400 7 4 8 6 Separated style
SLQ -150/25kA 150 150 375 400 25 6 8 6 Separated style
